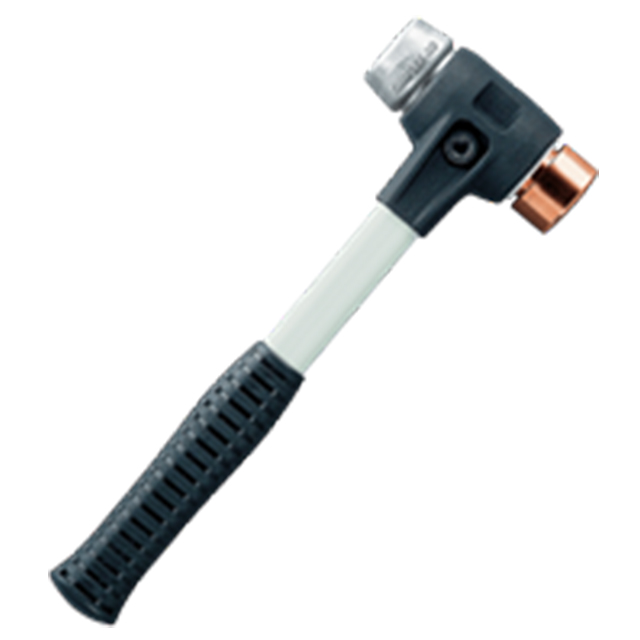

Design your own custom hammers. These professional soft-face mallets can be customized for specific applications by selecting the proper hammer inserts. Choose the same type of insert for both sides, or build a multi-purpose hammer with a different type of insert for each face. The Simplex system uses a patented hammer housing with 3-point clamping that ensures a safe hammer assembly. Made in Germany.
Fiberglass-handle Simplex Hammers
Type D White Superplastic(Medium Hard)
Type G Soft Metal(Hard)
Always wear safety goggles when using a hammer or any striking tool. Bystanders must also wear safety goggles. Never strike the hammer with or against another striking tool, hardened nail, or any other hard object that could cause damage. Chipping could occur, resulting in possible eye or other injury. Discard any chipped or damaged hammer. If assembling the hammer yself, ensure that all parts are properly fitted into the handle housing and that the screw is tightened to the specified torque.
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Housing | Cast Iron | - | reinforced, furnished with high-strength socket-head cap screw, spring washer, and nut | ✔ | ✔ |
| Handle | Fiberglass with ergonomic rubber grip | - | - | ✔ | ✔ |
| A Diameter (mm) | B (Inch) | C (Inch) | Inserts | Tightening Torque (ft-lbs) | Weight (lbs) |
| 30mm (1.18)mm | 11.81" | 3.54" | White Superplastic (Medium Hard) & Soft Metal (Hard) | 30 ft-lbs | 1.0 lbs |
