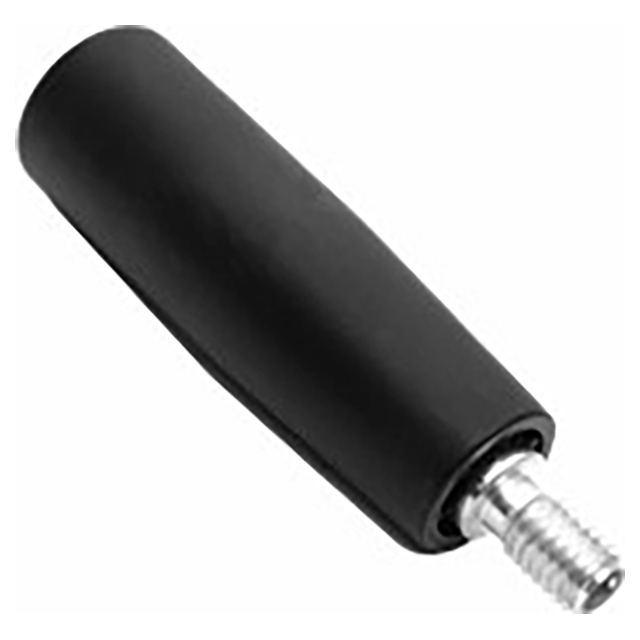

Modern square-design handle made of nylon thermoplastic with a threaded steel spindle. Revolving Handles have an internal bearing that allows the handle to remain fixed in your hand, for firm gripping while turning a Hand Wheel or crank. Threaded spindle has a hex socket for easy installation.
Revolving Handles can be used to make custom crank handles.
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body | Matte black nylon thermoplastic (textured surface for secure gripping, excellent impact resistance, operating temperatures to 230ยฐF) | Yes | Yes | Yes | Yes |
| Threaded Spindle | Mild Steel | Yes | Zinc Plated Clear Chromate, Molded In | Yes | โ/td> |
| Handle Size | A (Inch) | B (Inch) | C Thread | D Diameter (Inch) | E Diameter (Inch) | F (Inch) | G (Inch) |
| Size 3 | 2.66" | 0.55" | 5/16-18 | 0.91" | 0.51" | 4mm" | 0.10" |
