Spring Stop Buttons-Flat Face with Tang

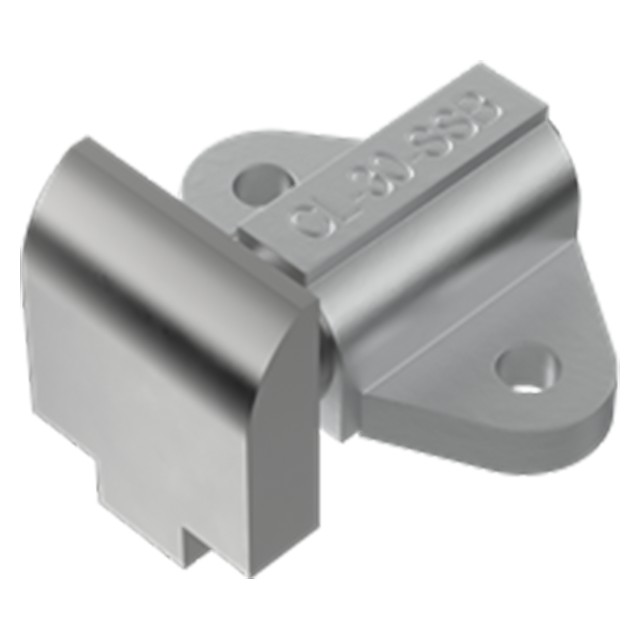

Spring Stop Buttons are flange-mounted Spring Plungers with a large contact face, ideal for applying side force to hold a workpiece against its locators until clamps are in place, and for other light clamping jobs. Type B, is designed for thin workpieces and sheets. Large bevel on the plunger makes loading easier. This type has a small tang that prevents sheets from sliding underneath the plunger. This tang may require a clearance slot in the base. Made in USA.
Application Information
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body | Aluminum Alloy | - | - | Yes | Yes |
| Spring | Spring Steel | - | - | Yes | Yes |
| Screw | Steel | - | - | Yes | Yes |
| Plunger | Mild Steel | Carburized-Hardened | Zinc Plated Clear Chromate | Yes | Yes |
Parts Specification
| Stroke | Initial Contact Force (lbs) | Halfway Contact Force (lbs) | Final Contact Force (lbs) | A (inch) | B (inch) | C (inch) | D (inch) | E (inch) | F (inch) | G | K (inch) | L (inch) | M (inch) | N (inch) | P (inch) | R (inch) |
| 1/4 | 16 lbs. | 32 lbs. | 48 lbs. | 1.500" | 11/16" | 1-5/16" | 1" | 1/4" | 7/16" | 1/4 or M6 | 1/2" | 3/8" | 1-1/4" | 13/32" | 1-1/4" | 3/32" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
