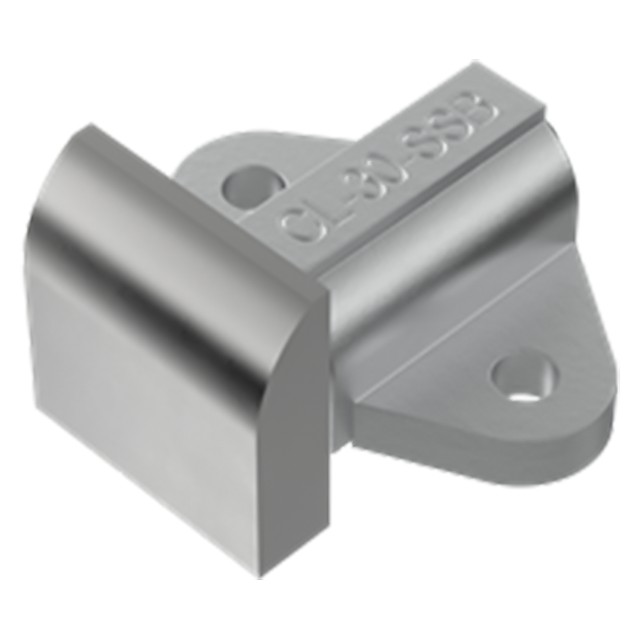

Spring Stop Buttons are flange-mounted Spring Plungers with a large contact face, ideal for applying side force to hold a workpiece against its locators until clamps are in place, and for other light clamping jobs. Type C, is ideal for flat-sided workpieces. Large bevel on the plunger makes loading easier. Made in USA.
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body | Aluminum Alloy | - | - | Yes | Yes |
| Spring | Spring Steel | - | - | Yes | Yes |
| Screw | Steel | - | - | Yes | Yes |
| Plunger | Mild Steel | Carburized-Hardened | Zinc Plated Clear Chromate | Yes | Yes |
| Stroke | Initial Contact Force (lbs) | Halfway Contact Force (lbs) | Final Contact Force (lbs) | A (inch) | B (inch) | C (inch) | D (inch) | E (inch) | F (inch) | G | L (inch) | M (inch) | N (inch) | P (inch) | R (inch) |
| 1/4 | 16 lbs. | 32 lbs. | 48 lbs. | 1.500" | 11/16" | 1-5/16" | 1" | 1/4" | 7/16" | 1/4 or M6 | 3/8" | 1-1/4" | 13/32" | 1-1/4" | 3/32" |
