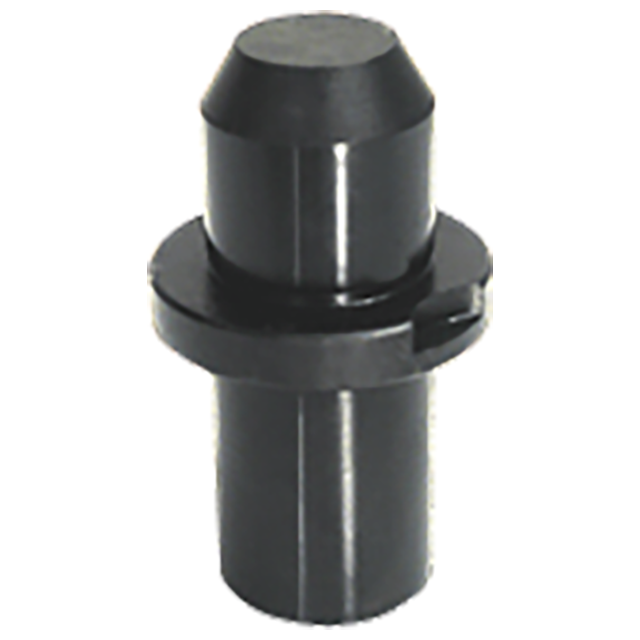

Carr Lane CL-312-RLT | 5/16" Diameter Steel Black Oxide Coated Round Locating Pin

$15.78
Brand:
Carr Lane
Diameter (Inch):
5/16"
Diameter (Decimal Inch):
0.3125"
Diameter (mm):
7.94mm
SKU:
50018082
UPC:
Weight:
0.04 LBS
Shipping:
Calculated at Checkout

Lockscrew Type

One Round Locating Pin and one Diamond Locating Pin are often used together to locate from two holes without binding, because the Diamond Locating Pin is relieved to locate in only 1 axis. The type shown here, with a slip-fit shank and lockscrew slot, is designed for renewable installation. Head and shank diameters are concentric to within .0005" TIR. Made in USA.

Application Information

A series of locating pins can take the place of a locating plug. The pins are positioned at three points, 120 degrees apart, around the internal diameter of the hole. This arrangement is usually much more economical than making a custom plug.

Locating Principles

When a round pin and diamond pin are used together, the round pin is the primary, 2-axis locator, while the diamond pin is the secondary, 1-axis locator. Diamond pins are relieved to locate only radially around the round pin, avoiding redundant location. This prevents binding, yet still maintains high accuracy.

Material

Material Heat Treat Finish DFARS RoHS
1144 Steel Heat Treated Rc 48-55 Black Oxide Yes Yes

Parts Specification

B Shank Diameter (Inch)A Diameter Nominal (Inch)A Diameter Actual (Inch)C (Inch)D (Inch)E Diameter (Inch)F (Inch)G (Inch)
5/16"5/16"0.3120"1-3/16"7/16"5/8"3/32"33/64"
