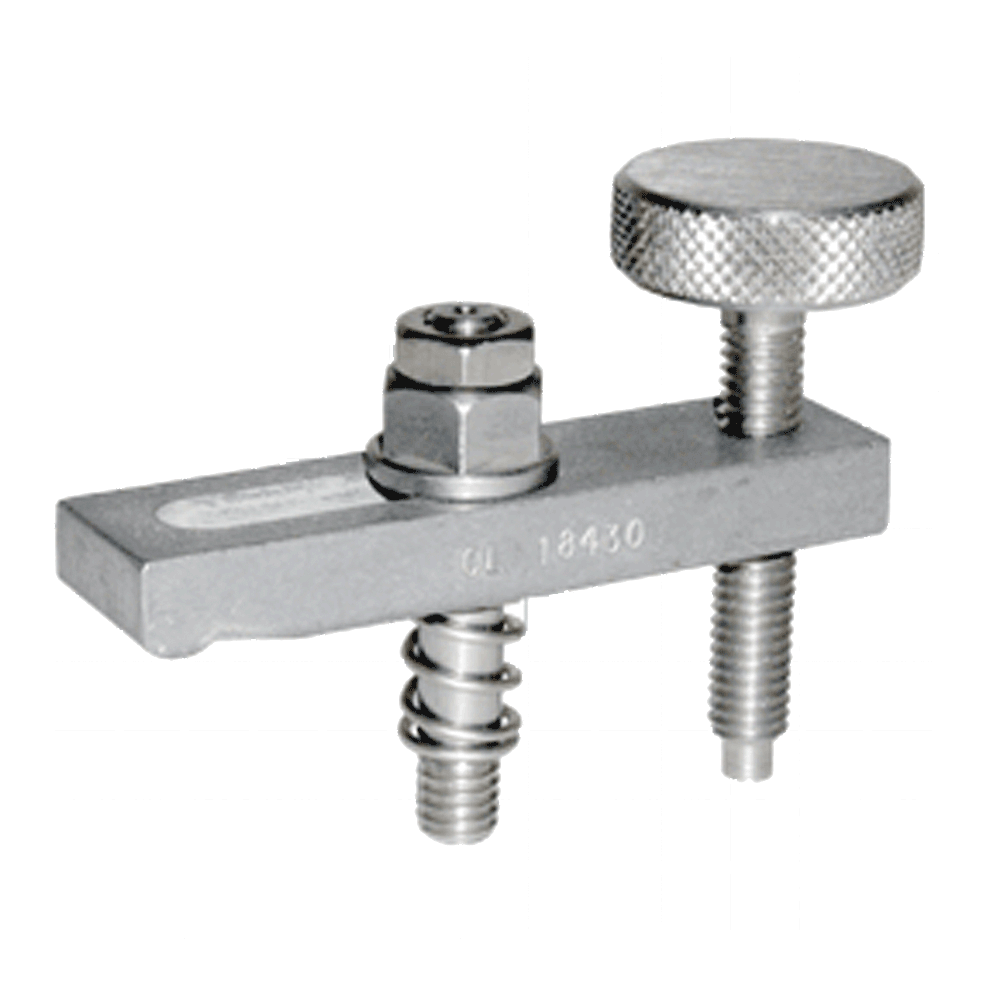

Mini-size stainless steel version of the Tapped-Heel Clamp Straps, with a radius nose to provide firm workpiece contact. These clamp straps have a tapped heel that accepts a clamping screw or adjustable rear support. When used with a clamping screw, clamp by tightening the screw. When used with a rear support, clamp by tightening the center nut.Made in USA.
This assembly includes a Tapped-Heel Clamp Strap plus the following items:
| Material | Heat Treat | Finish | DFARS | RoHS |
| 300-Series Stainless Steel | - | - | Yes | Yes |

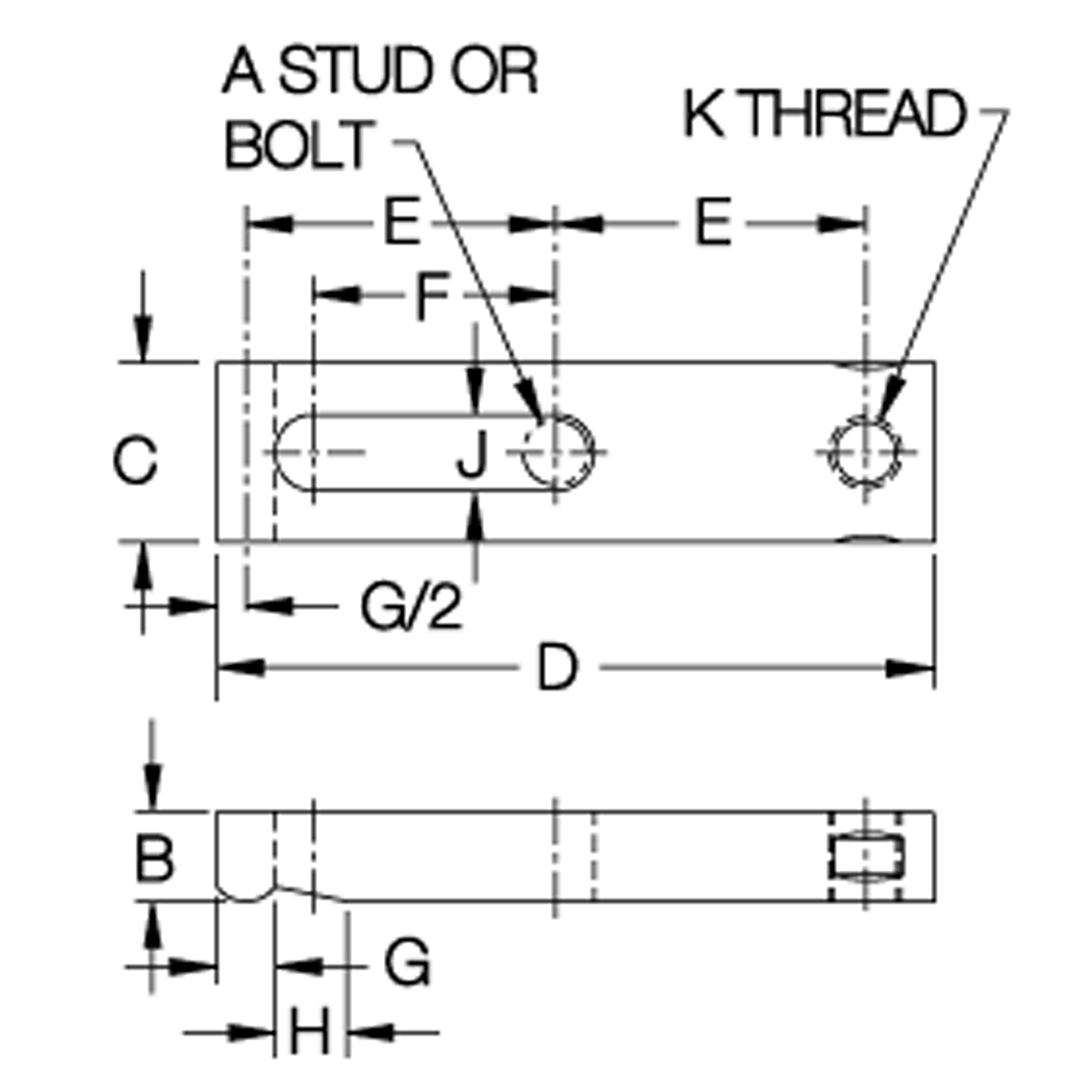

| Thread Size | A (Inch) | B (Inch) | C (Inch) | E (Inch) |
| #10-32 | 2" | 1/2" | 1/4" | 27/32" |
