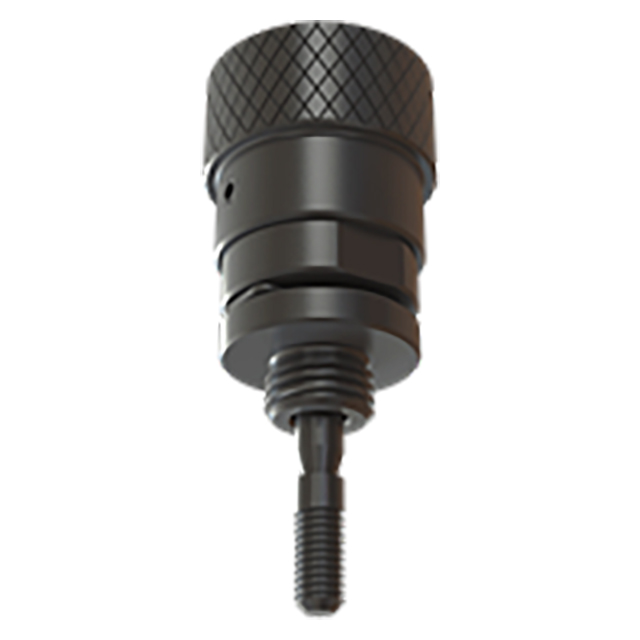

Carr Lane CL-313-CCPT-3.000 | 5/16" Diameter x 5/16-24 Thread Captive Clamping Pin

$9.46
Brand:
Carr Lane
Thread:
5/16-24"
Diameter (Inch):
5/16"
Diameter (Decimal Inch):
0.3125"
Diameter (mm):
7.94mm
SKU:
50013566
Weight:
0.09 LBS
Shipping:
Calculated at Checkout

Captive Clamping Pins with Knurled Knob

Carr Lane Captive Clamping Pins have a knurled knob for tightening by hand and a pin body that is positively retained in a locking bushing. In fully retracted position, the bushing’s spring clip snaps into the pin’s radial groove. This holds the pin fully retracted by the force of the spring. These pins also incorporate a positive thread stop (the .10"-long unthreaded portion with a square shoulder, above the threads) to positively prevent screwing the pin past the spring clip. Pressure from the spring also holds the screw in intermediate extended positions, this is especially an advantage if the fixture is turned upside down. Carr Lane captive clamping pins are proudly engineered and manufactured in the USA.

Application Information

In fully retracted position, the bushing's spring clip holds the pin body fully retracted by spring force and positively prevents removal. Spring pressure also holds the pin body in intermediate extended positions.

Material

Stainless Steel
Item Material Heat Treat Finish
Knob 8620 Steel Case Hardened Black Oxide
Pin Body 1215 Steel Carburized-hardened Black Oxide
Roll Pin Spring Steel - N/A

Parts Specification

B Pin Body Diameter Nominal (Inch)B Pin Body Diameter Actual (Inch)A MaxC Diameter (Inch)D Thread (Inch)E (Inch)
5/16"0.3115"3.0000.21"5/16-24"4.32"
