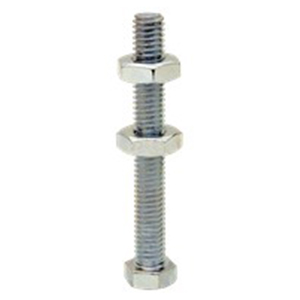

Simple spindle design that provides maximum clamping force. Fully threaded for maximum adjustment range. Assembly includes two Jam Nuts. Steel spindles are available in thread sizes from #10-32 to 5/8-11 (M5 to M16 in metric). Small spindles with #8-32 thread size (M4 in metric) are made of nylon. #8-32 and 1/4-20 thread sizes are also available in steel with a vinyl-dipped head. Stainless steel spindles are available in thread sizes from #8-32 to 1/2-13 (M4 to M10 in metric).
| Steel | |||||
| ITEM | MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS |
| Hex-Head Spindles | Mild Steel | - | Zinc Plated Clear Chromate | ✔ | ✔ |
| Nylon | |||||
| ITEM | MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS |
| Hex-Head Spindles | White Nylon 101 | - | - | ✔ | ✔ |
| Stainless Steel | |||||
| ITEM | MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS |
| Hex-Head Spindles | 300-series stainless steel | - | - | ✔ | ✔ |

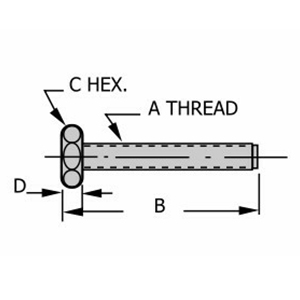

| Part Number | A THREAD | B | C | D |
| CL-316112-SA-PACKOF5 | #10-32 | 1-3/8 | 5/16 | 1/8 |
