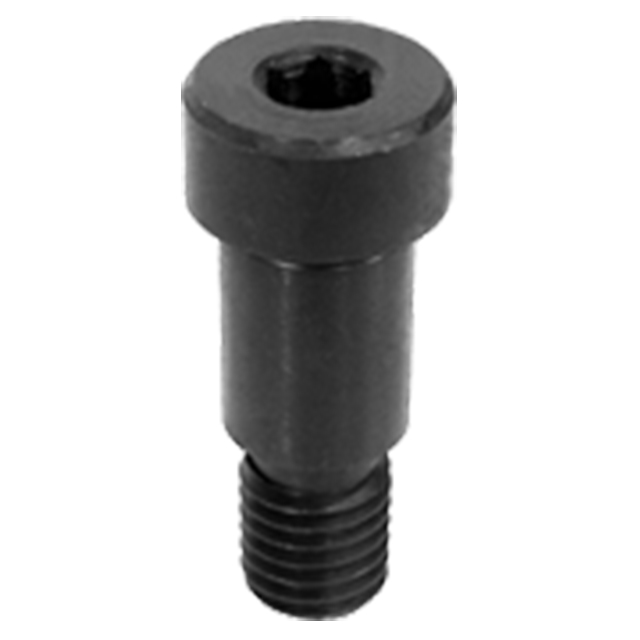

Shoulder Screws
Precision close-tolerance Shoulder Screw. The shoulder diameter is ground to a closer tolerance than ordinary stripper bolts, for better bearing action. Shoulder length is held to a plus tolerance to allow a nominal-size plate to swing freely underneath the head.
Application Information
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| Alloy Steel | Heat Treated Rc 32-43 | Black Oxide | Metric | Yes |
Parts Specification
| Shoulder Diameter Nominal (Inch) | Shoulder Diameter Actual (Inch) | A Thread (Inch) | B Nominal (Inch) | B Actual (Inch) | D (Inch) | E (Inch) | F Diameter (Inch) | G (Inch) |
| 1/2" | 0.5000" | 3/8-16" | 3/4" | 0.7500" | 5/16" | 5/8" | 3/4" | 1/4" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Diameter:
1/2"
Ships:
From Manufacturer
