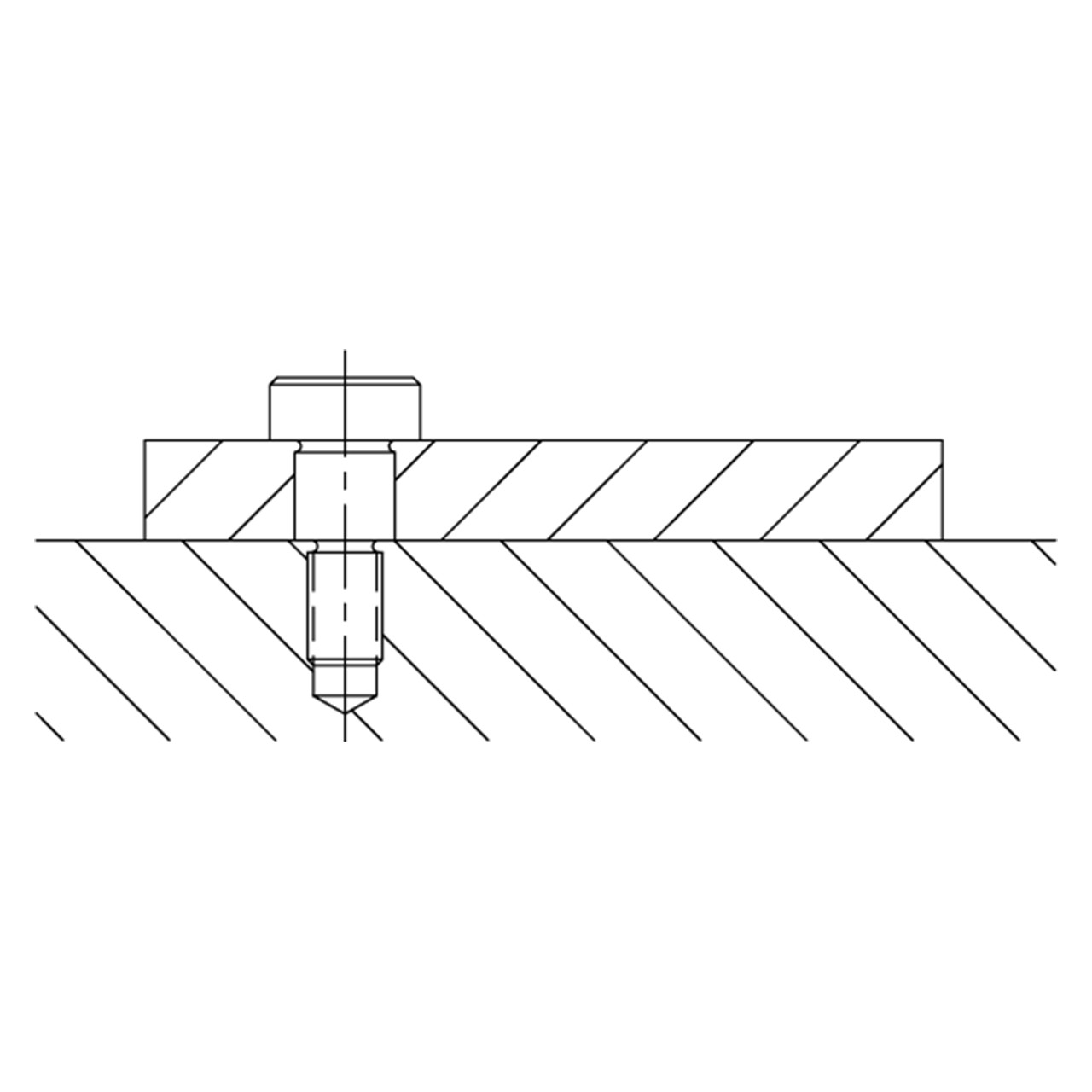

Precision close-tolerance Shoulder Screw. The shoulder diameter is ground to a closer tolerance than ordinary stripper bolts, for better bearing action. Shoulder length is held to a plus tolerance to allow a nominal-size plate to swing freely underneath the head.
| Material | Heat Treat | Finish | DFARS | RoHS |
| Alloy Steel | heat treated Rc 32-43 | Black Oxide | Metric | Yes |

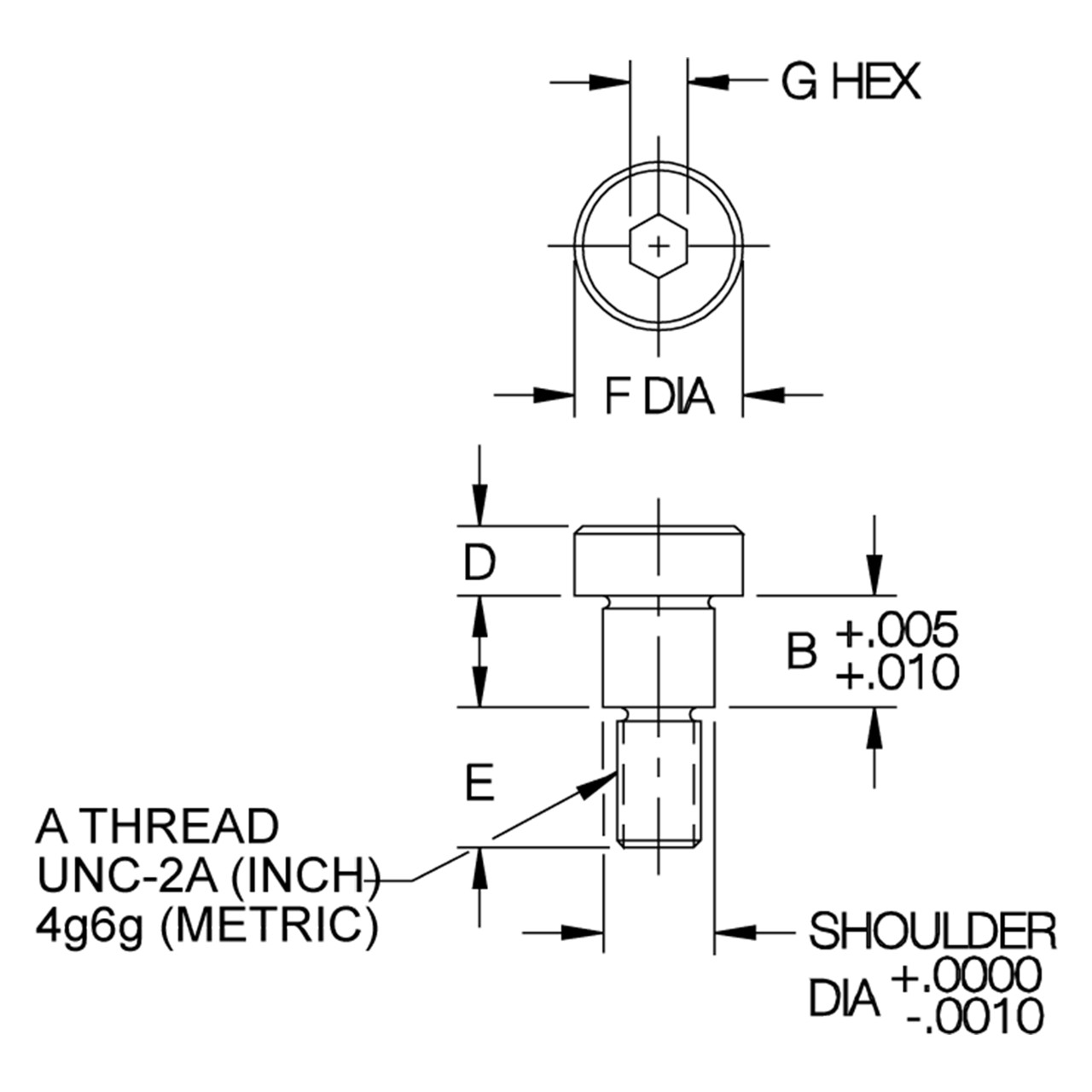

| Shoulder Diameter Nominal (Inch) | Shoulder Diameter Actual (Inch) | A Thread | B Nominal (Inch) | B Actual (Inch) | D (Inch) | E (Inch) | F Diameter (Inch) | G (Inch) |
| 1/2" | 0.5000" | 3/8-16 | 1/2" | 0.5000" | 5/16" | 5/8" | 3/4" | 1/4" |
