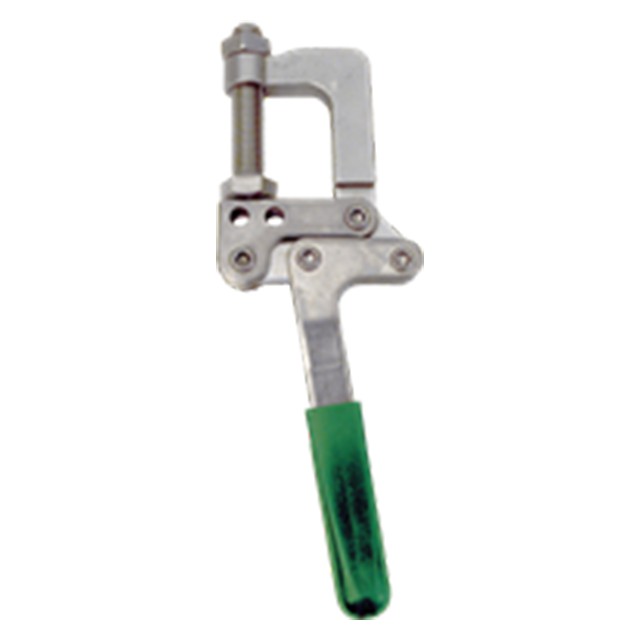

Heavy-duty squeeze-action clamp that can be permanently attached by bolting or welding it in place. Clamping jaw opens a full 90º for extra clearance, while handle moves 50º. Made entirely of Stainless Steel. 800 lbs. holding capacity.

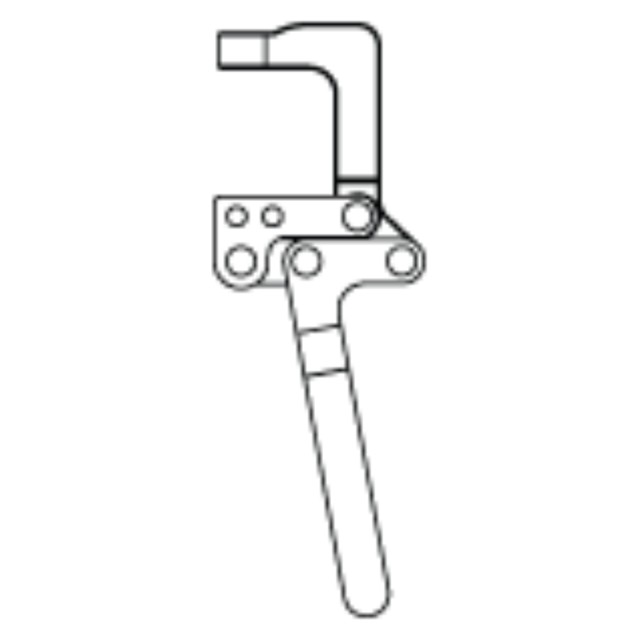

Clamped Position
Open Position
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Clamp Body | 300-Series Stainless Steel | - | Zinc Plated Clear Chromate | ✔ | ✔ |
| Rivets | 400-Series Stainless | - | - | ✔ | ✔ |
| Description | Holding Capacity (lbs.) | Shipping Weight (lbs.) |
| Hex-Head Spindle, Weld-On / Bolt-On Base | 800lbs. | 1.0lbs. |
