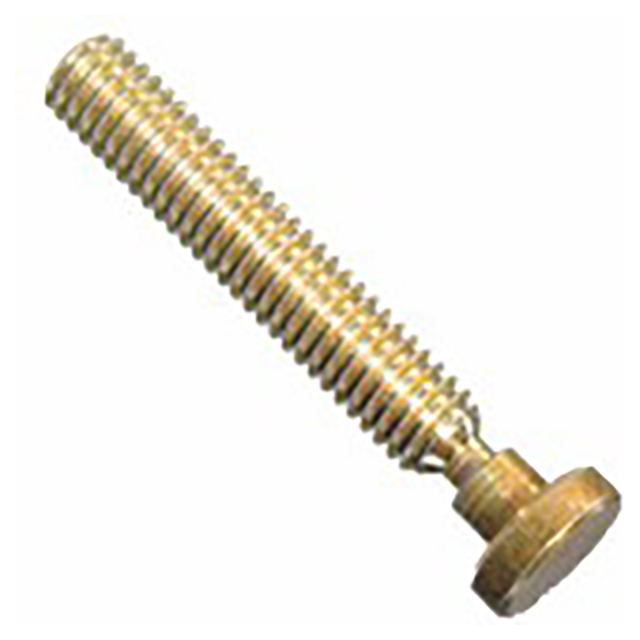

Swivel Screw Clamp
High-quality clamping screw that accepts a wide assortment of swivel feet. The swivel screws shown here include the Type B large foot. Made in USA.
Swivel Foot
Swivel Head Screws use the patented left-hand-thread swivel-foot system. The ball end of the body screws into the foot for easy installation and removal. Once the ball threads pass beyond the foot threads, the foot can rotate and pivot freely (20° total angle). Foot threads are left-hand to positively prevent accidental backout during use. Delrin feet are optional for types A and B.
Design Considerations
For full hex-socket strength, the socket end of the body should be entirely inside its tapped hole during final tightening.
Material
Stainless Steel | |||||
Item | Material | Heat Treat | Finish | DFARS | RoHS |
Body and Stainless Foot | 300-Series Stainless Steel | Passivated | Yes | Yes | Yes |
Delrin foot | White Delrin 500 | Yes | Yes | Yes | Yes |
Parts Specification
A Thread (Inch) | B (Inch) | F (Inch) | G Diameter (Inch) | H (Inch) | J (Inch) |
1/2-13" | 1/4" | 2-1/16" | 3/4" | 17/32" | 3/16" |
