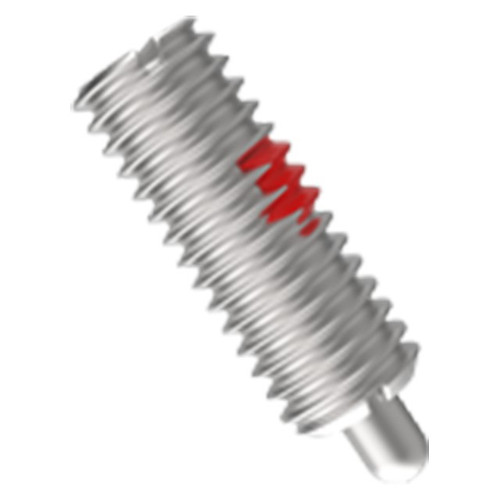

Short Spring Plungers with Extended Travel have the body length of a Short Spring Plunger while providing the longer stroke of a standard Spring Plunger. The version has a stainless steel body and plunger nose, for extra corrosion resistance. Made in USA.
Install and/or adjust from either end. When using the slot at the plunger end to install, use a Plunger Wrench instead of a screwdriver to avoid over-compressing the spring (see Related Products below). A thread-locking element holds the unit securely in place after installation.
Nose Extended
Nose Retracted
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body and Plunger Nose | 300-Series Stainless Steel | - | - | Yes | Yes |
| Spring | 302 Stainless | - | - | Yes | Yes |
| A Thread | Initial End Force (lbs) | Final End Force (lbs) | B (inch) | Cยฑ.010 (inch) | D Diameter (inch) |
| #10-32 | 1.2 lbs. | 4.2 lbs. | 15/32" | 0.125" | 0.093" |
