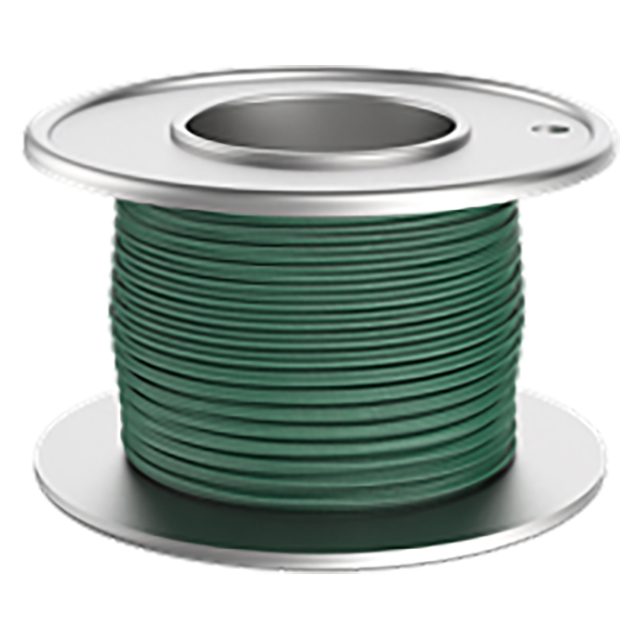

High-strength stranded wire cable with a green nylon coating. Choice of four cable diameters. Cable size #1 is made of stainless steel. Sizes #2, #3, and #4 are made of galvanized steel, Specify the length of cut cable pieces in inches to one decimal place, from 3.0" minimum to 599.9" maximum.ย Cut pieces are held to +/-1/4" tolerance up to 24" long.
Cable Assemblies are ideal for attaching removable alignment pins and other tooling components.
Galvanized steel stranded wire, nylon coated. DFARS and RoHS compliant.
| Material | Cable Size (Inch) | Length | D Diameter After Coating (Inch) | D Diameter Before Coating (Inch) | Cable Construction (Inch) | Breaking Strength(lbs) |
| Steel | 4" | 250 Feet | 0.187" | 0.125" | 7x19" | 800 |
