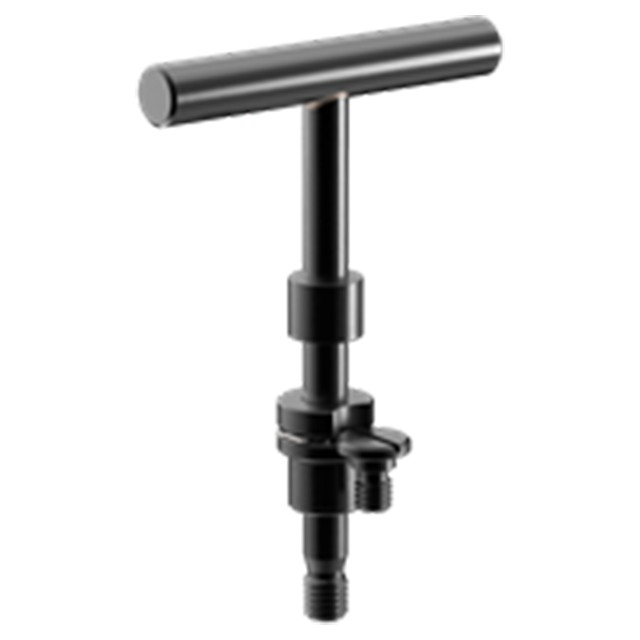

Locking Clamping Pins
Similar to standard Clamping Pins, except that the pin body is positively retained in a locking bushing. In fully retracted position, the bushing's spring clip snaps into the pin's radial groove. This holds the pin fully retracted by spring force and positively prevents removal. Spring pressure also holds the pin in intermediate extended positions, an advantage especially if the fixture is turned upside down.These threaded alignment pins can be used for locating and clamping, or for clamping only, depending on extended screw length. The upper bushing is furnished separate from the pin, and must be welded in place at the proper length to suit the application. Made in USA.
Application Information
In fully retracted position, the bushing's spring clip holds the Clamping Pin fully retracted by spring force and positively prevents removal. Spring pressure also holds the pin in intermediate extended positions.
Material
| Item | Material | Heat Treat | Finish |
| Pin | 1215 Steel | Carburized-hardened | Black Oxide |
| Handle and Weld-On Bushing | 1215 Steel | - | Black Oxide |
| Locking Bushing | 8620 Steel | Carburized-hardened | Black Oxide |
| Retainer Clip | Spring Steel | - | N/A |
Parts Specification
| A Diameter Nominal (Inch) | A Diameter Actual (Inch) | B Pin Length (Inch) | P Bushing Length Under Head (Inch) | P (Inch) | C Thread (Inch) | D (Inch) | E Diameter (Inch) | F Diameter (Inch) | G (Inch) | H (Inch) | L (Inch) | M (Inch) | N Diameter Nominal (Inch) | N Diameter Actual (Inch) | R (Inch) | S (Inch) | Clamping Pin (included) | Bushing (included) | Lockscrew (included) |
| 1/2" | 0.4990" | 5" | Standard" | 0.50" | 1/2-13" | 1/2" | 3/4" | 5/8" | 3-1/2" | 0.69" | 4" | 0.35" | 3/4" | 0.7518" | 0.75" | 1-1/16" | CL-4-LCP INCLUDED | CL-8-LPB INCLUDED | LS-1 INCLUDED |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
