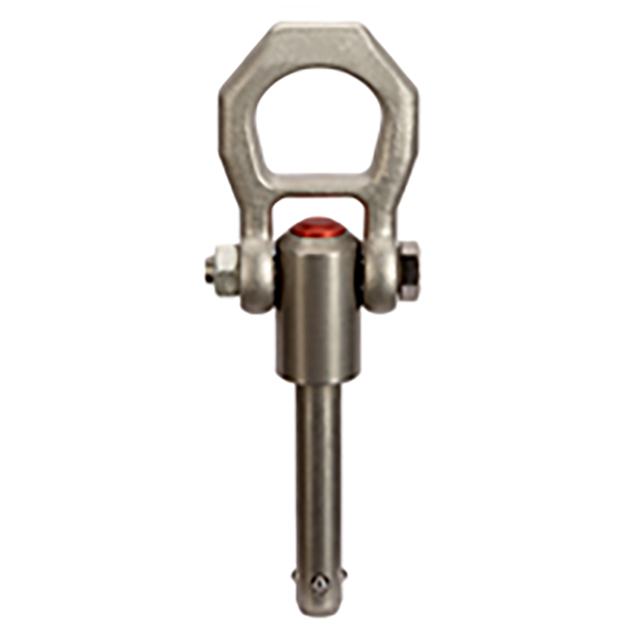

Lifting Pins are corrosion-resistant single-acting Ball Lock Pins with a solid, one-piece body and four balls for high tension loads. Positive locking until released by pushing the button. Sturdy forged shackle for heavy lifting. Made in Germany.
Ball Lock Pins are positive locking until released by pushing the button, which moves the center spindle forward to allow the balls to retract.
| Stainless Steel | |||||
| Item | Material | Heat Treat | Finish | ||
| Pin | Stainless Steel | Precipitation-Hardened | - | ||
| Button | Aluminum | - | Red-Anodize | ||
| Shackle | Stainless Steel | - | - | ||
| Spring | Stainless Steel | - | - | ||
| A Diameter Nominal (Inch) | A Diameter Actual (Inch) | Grip Length+.024/-0.000 | B (Inch) | C ยฑ.04 | D (Inch) | E Diameter (Inch) | F (Inch) | G (Inch) | H (Inch) | K | L (Inch) | M (Inch) |
| 1/4" | 0.2470/.2485" | 0.50 | 0.29" | 0.33 | 1.18" | 0.85" | 1.93" | 1.94" | 1.50" | 1.01 | 1.06" | 0.37" |
