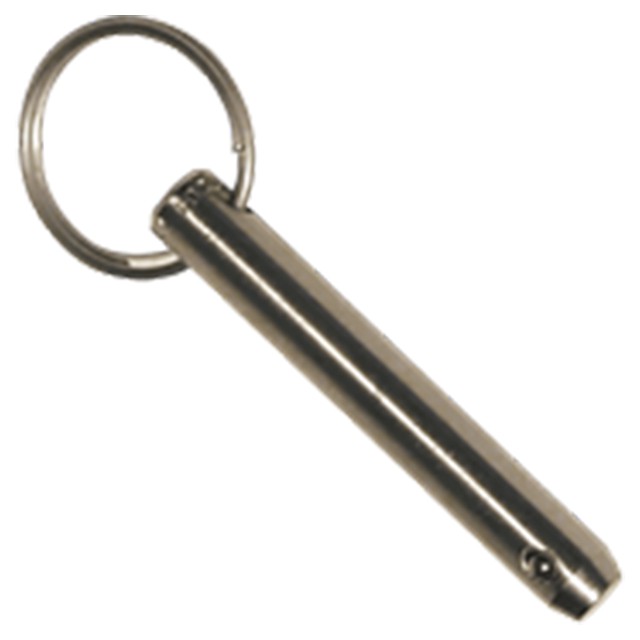

Carr Lane CL-4-MDP-2.00-S-NL | 1/4" Diameter x 2" Grip Length Marine Detent Pin

Marine Detent Pins

Made of 316 stainless steel for extra corrosion resistance. Economical quick-release alignment pin with a solid shank and spring-loaded locking balls. This type of Detent Pin has a ring instead of a solid shoulder, for applications where exact grip length is not important. Locking balls hold the pin in place by spring force (not positive locking like a Ball Lock Pin). Simply push the pin to insert, and pull to remove. Made in USA.

Technical Information

Locking balls hold the pin in place by spring force. Simply push the pin to insert, and pull to remove. 3/16"-diameter pins have only one locking ball instead of two due to their small size.

Application Information

These Detent Pins are made of 316 stainless steel for extra corrosion resistance in marine environments.

Optional Cable

To order pins with a standard cable assembly attached (Cable Assembly CL-82-KA-12.0-#2 cable size, 12" long, with a terminal at the free end for a #10 or M5 attachment screw), add "-C" to the part number .For an optional 10" nylon lanyard, add "-NL" to the part number.

Material

Shank > 316 Stainless Steel. Ring > 316 or 300-series Stainless Steel. Spring and balls > 316 Stainless Steel. DFARS and RoHS compliant.

Parts Specification
