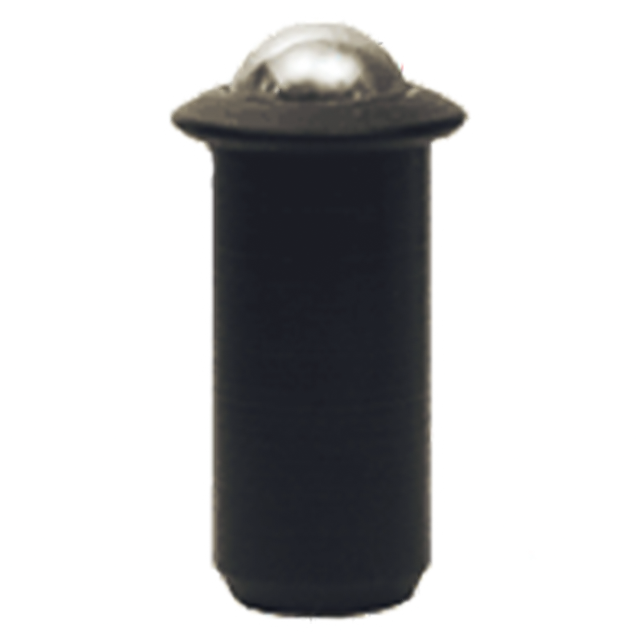

Press-Fit Ball Plungers-Steel
Simple, economical ball plunger ideal for installation in softer materials, such as aluminum, wood, or plastic. Use when a threaded hole would be impractical or when adjustment is not required. Sturdy shoulder provides a fixed seating position and positively resists detent force. Installation hole can be counterbored to recess the shoulder.
The version has a steel body and a 440C stainless steel ball. Made in USA.
Application Information
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body | 1215 Steel | - | Black Oxide Finish | Yes | Yes |
| Ball | 440C Stainless Steel | - | - | Yes | Yes |
| Spring | Music Wire | - | - | Yes | Yes |
Parts Specification
| A Diameter (inch) | Initial End Force (lbs) | Final End Force (lbs) | B (inch) | C (inch) | D Diameter (inch) | E Diameter (inch) | F (inch) |
| 0.250" | 1.5 lbs. | 3.5 lbs. | 0.481" | 0.070" | 0.188" | 0.312" | 0.044" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Diameter (Decimal Inch):
0.2500"
Diameter (Inch):
1/4"
Diameter (mm):
6.35mm
