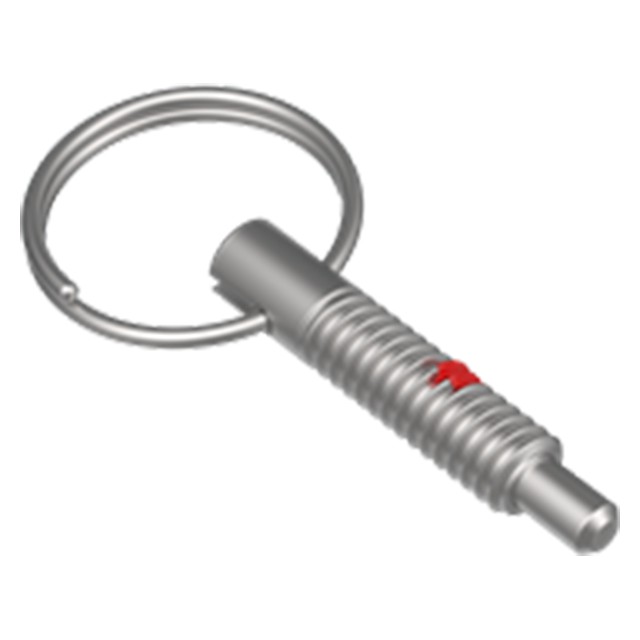

Carr Lane CL-4-PHRP | 1/4-20" Thread Steel Hand-Retractable Plunger

$24.34
Ships:
From Manufacturer
Brand:
Carr Lane
Ships:
From Manufacturer
SKU:
50021203
UPC:
Weight:
0.01 LBS
Shipping:
Calculated at Checkout

Hand-Retractable Plungers-Pull Ring

Spring-loaded plunger that locks in retracted position. Handy pull ring allows quick actuation, yet folds out of the way when not in use. To lock, pull the ring back and turn 90°. Made in USA.

Application Information

Operation

Extended

Retracted

Material

Stainless Steel
ItemMaterialHeat TreatFinishDFARSRoHS
Plunger, Body, Knurled Head and Spring300-series Stainless Steel--YesYes

Parts Specification

A ThreadInitial End Force (lbs)Final End Force (lbs)B Diameter (inch)C (inch)D (inch)E (inch)F Diameter (inch)H (inch)J Diameter (inch)
1/4-201 lbs.2.5 lbs.0.156"1/4"13/16"1-1/8"1"7/64"1/4"

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
