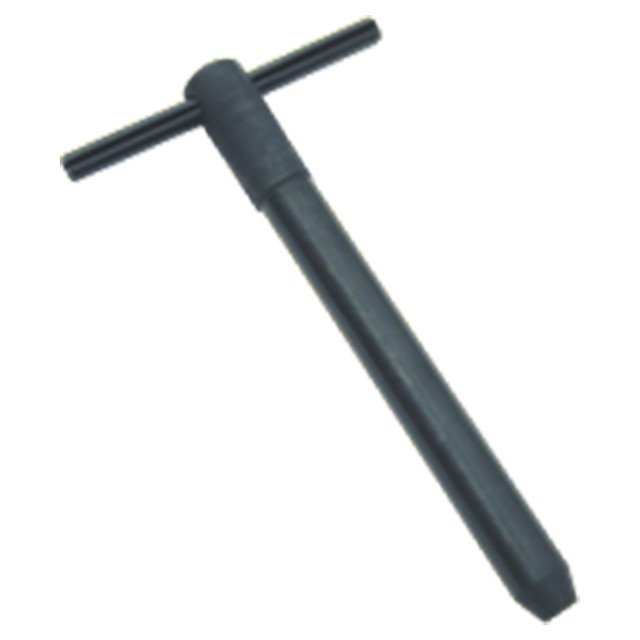

Jig Pins
Removable locating pins, precision ground for accurately aligning holes. Similar to an L or T Pin, but with an integral shoulder to keep the handle raised, and with pin diameter ground .0003" under nominal size. To convert from a T handle to an L handle, slide the roll-pin handle by tapping it with a hammer. Made in USA.
Application Information
Jig Pins have a roll-pin handle that can be converted from a T handle to an L handle.
Material
| Item | Material | Heat Treat | Finish |
| Pin | 1144 Steel | Heat Treated | Black Oxide |
| Handle | Spring Steel | - | Black Oxide |
Parts Specification
| A Diameter Nominal (Inch) | A Diameter Actual (Inch) | B (Inch) | C (Inch) | D Diameter (Inch) | E (Inch) | F (Inch) |
| 3/8" | 0.3745" | 3-1/4" | 1/4" | 1/2" | 3" | 1/4" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Diameter (Inch):
3/8"
Pin Shape:
Jig Pin
Diameter (Decimal Inch):
0.3750"
Diameter (mm):
9.53mm
