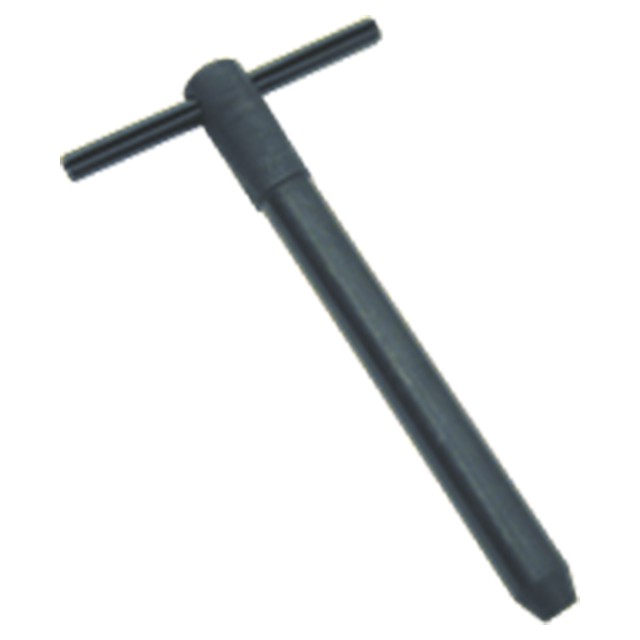

Removable locating pins, precision ground for accurately aligning holes. Similar to an L or T Pin, but with an integral shoulder to keep the handle raised, and with pin diameter ground .0003" under nominal size. To convert from a T handle to an L handle, slide the roll-pin handle by tapping it with a hammer. Made in USA.
Jig Pins have a roll-pin handle that can be converted from a T handle to an L handle.
| Item | Material | Heat Treat | Finish |
| Pin | 1144 Steel | Heat Treated | Black Oxide |
| Handle | Spring Steel | - | Black Oxide |
| A Diameter Nominal (mm) | A Diameter Actual (mm) | B (mm) | C (mm) | D Diameter (mm) | E (mm) | F (mm) |
| 6mm | 5.992mm | 51mm | 3.9mm | 9.5mm | 51mm | 4.8mm |
