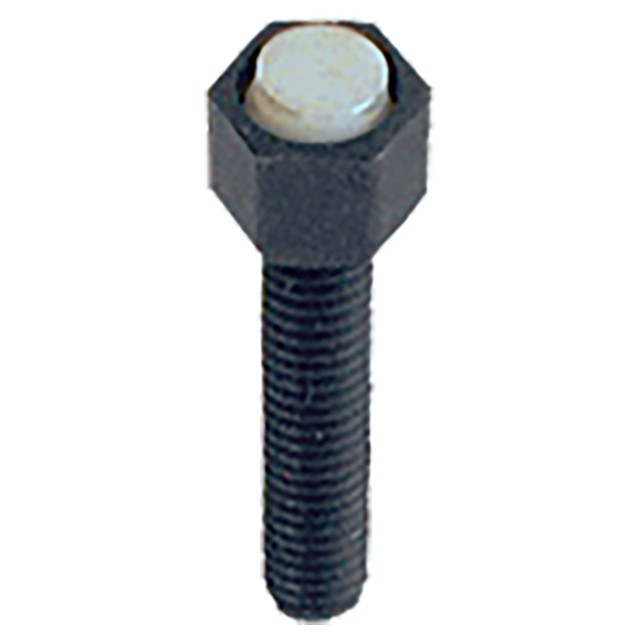

Mini-size threaded contact bolt with a built-in swivel ball held by a retaining ring. The flat gripper face is machined directly on the swivel ball. A positive stop prevents the ball from swiveling too far. Can be used as a contact bolt, or as a support. Made in USA.
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body and Gripper Screw | Steel | Carburized-Hardened | Black Oxide | Yes | Yes |
| Flat Delrin swivel ball | White Delrin 500 | - | Black Oxide | Yes | Yes |
| O-ring | Ruber | - | - | Yes | Yes |
| A Thread | B (Inch) | C Diameter (Inch) | D (Inch) | E (Inch) | F Diameter (Inch) | G |
| 1/4-20 | 1-1/2" | 1/4" | 3/8" | 7/16" | 9/32" | 14ยฐ |
