Carr Lane CL-4235 | 3/8"-16 Thread Tapered-Nose Clamp Strap

Tapered-Nose Clamp Strap Assembly

Mini-size version of Tapped-Heel Clamp Straps. Tapered nose allows clamping in tight spaces. Since this strap is not slotted, turn 90° for loading clearance. These clamp straps have a tapped heel that accepts a clamping screw or adjustable rear support. When used with a clamping screw, clamp by tightening the screw. When used with a rear support, clamp by tightening the center nut.

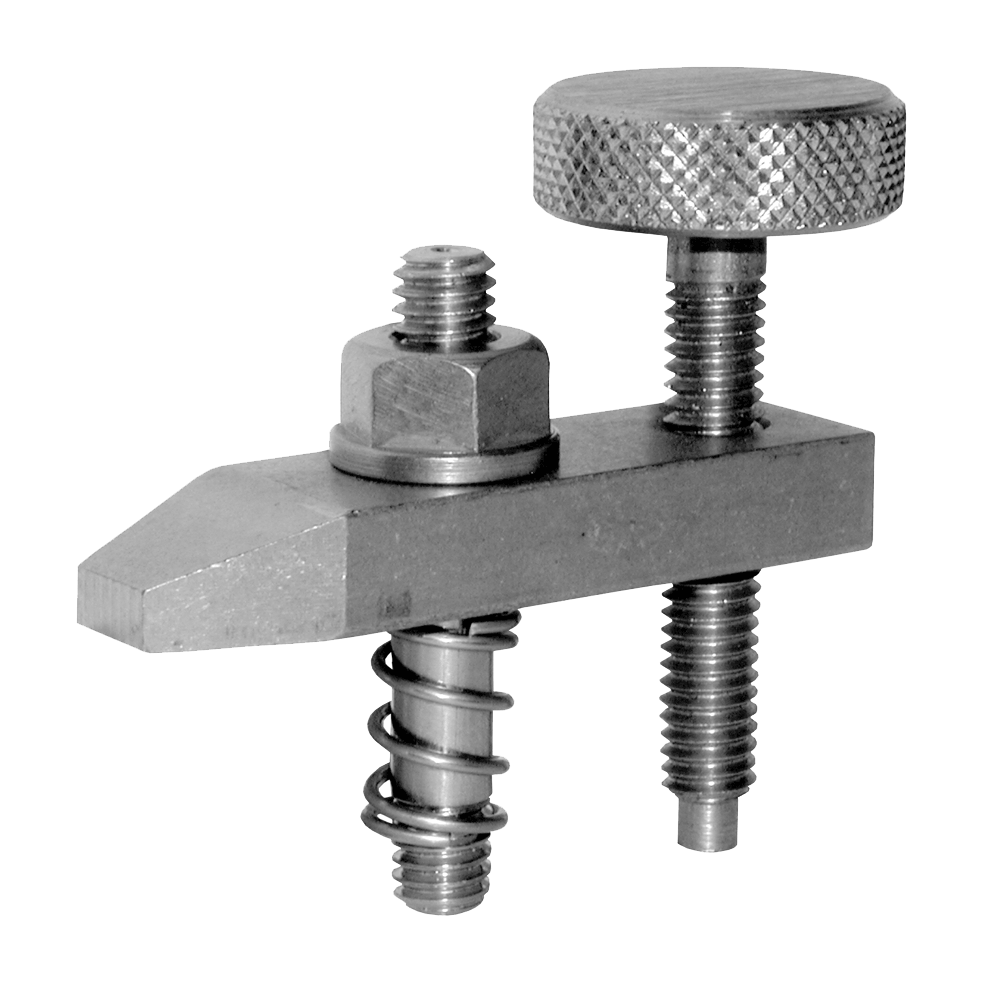

Assembly with Knurled-Head Screw

This assembly includes a Tapered-Nose Clamp Strap plus the following Items:

• Knurled-Head Screw
• Flange Nut
• Fixture Stud
• Clamp Spring
• Flat Washer
• Jam Nut

Material

Parts Specification
