Product Information

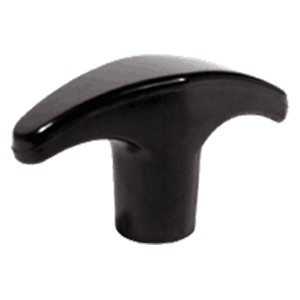

Easy-grip handle for push/pull applications, such as release latches and cabinet doors. Available in one handle size, with tapped-hole sizes from #10-32 to 5/16-18 (M5 to M8 in metric). Molded-in brass insert provides superior thread strength. Non-standard thread sizes, or molded-in studs are available in quantities of 500 and above. Made in USA.

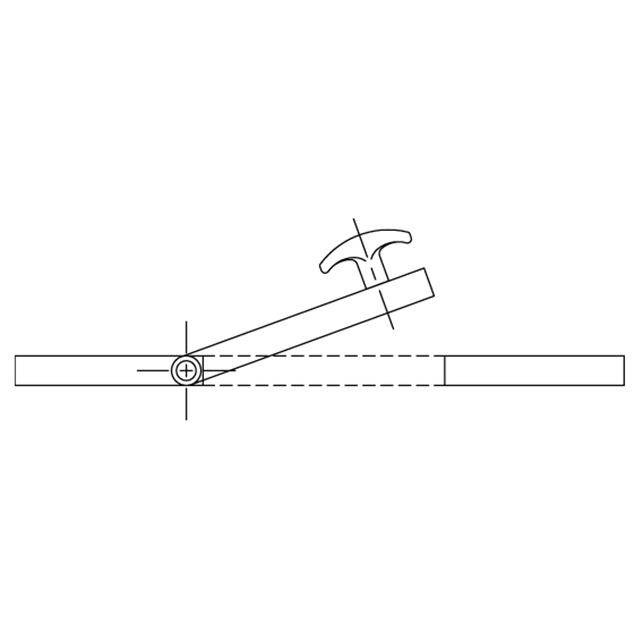

Application Information
Material
| MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS |
| Black phenolic plastic (glossy smooth finish, extremely hard, electrical insulator, operating temperatures to 300 Degree, resistant to oils and most common chemicals) | - | Molded-in Brass Insert | ✔ | ✔ |
Parts Specification

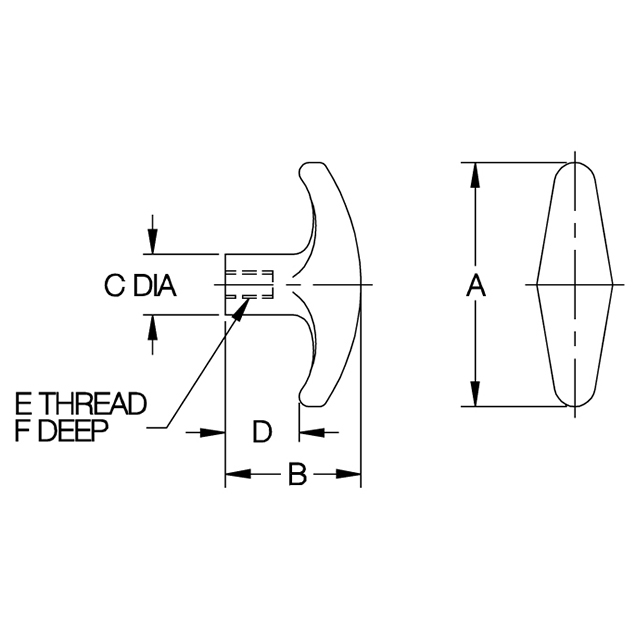

| Part Number | A | B | C DIA | D | E THREAD | F |
| CL-432-TH-PACKOF2 | 2-1/4 | 1-1/4 | 9/16 | 11/16 | 1/4-20 | 7/16 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Thread Size:
1/4-20"
Diameter (Inch):
9/16"
Diameter (Decimal Inch):
0.5600"
Diameter (mm):
14.29mm
