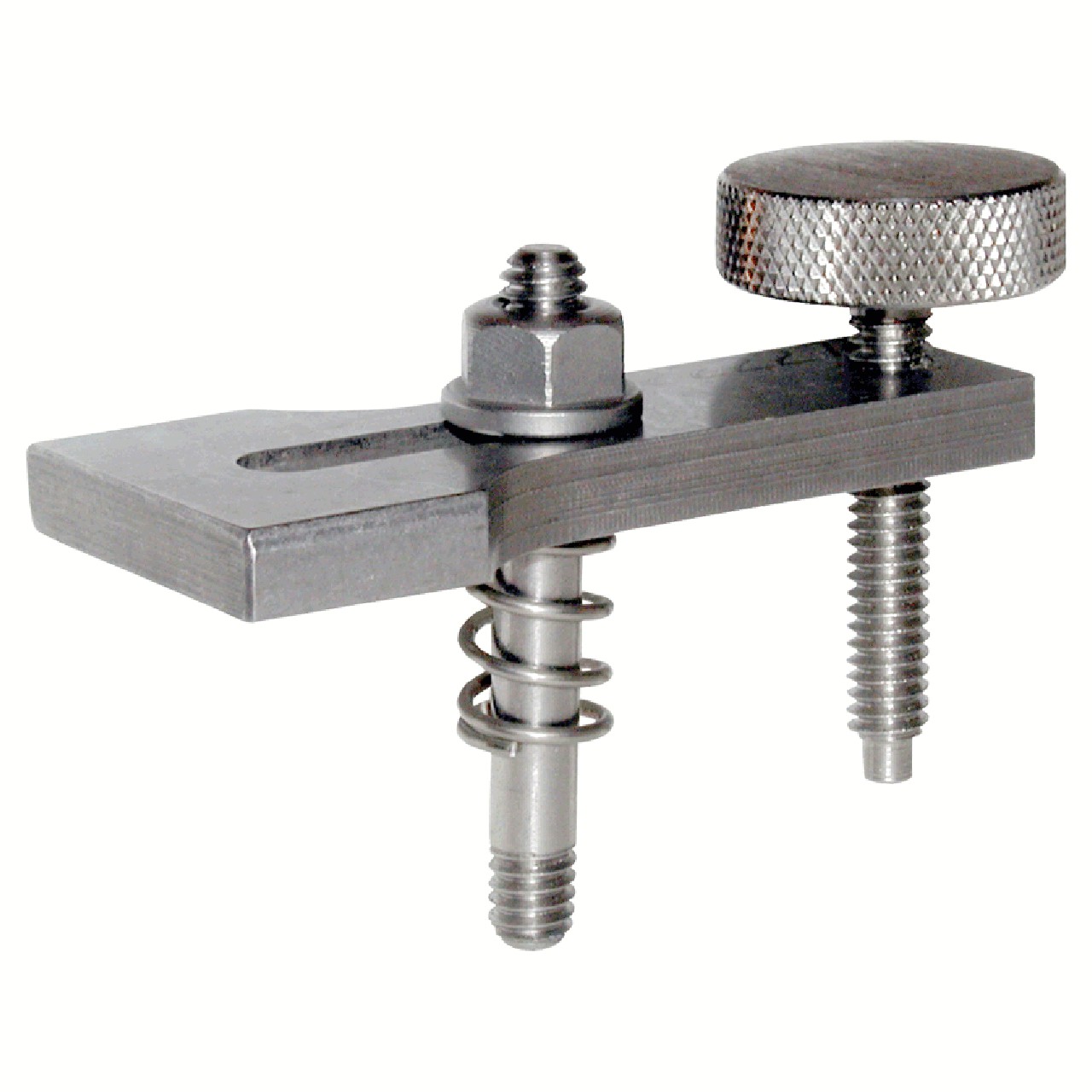

Carr Lane CL-44227 | 1/4"-20 Thread Wide-Nose Clamp Strap

Wide-Nose Clamp Strap Assembly

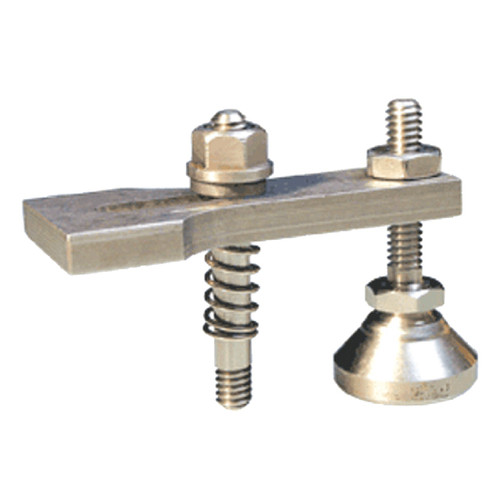

Mini-size version of Tapped-Heel Clamp Straps. Extra-wide nose can be used to distribute clamping force evenly, or to clamp two parts simultaneously. These clamp straps have a tapped heel that accepts a clamping screw or adjustable rear support. When used with a clamping screw, clamp by tightening the screw. When used with a rear support, clamp by tightening the center nut.

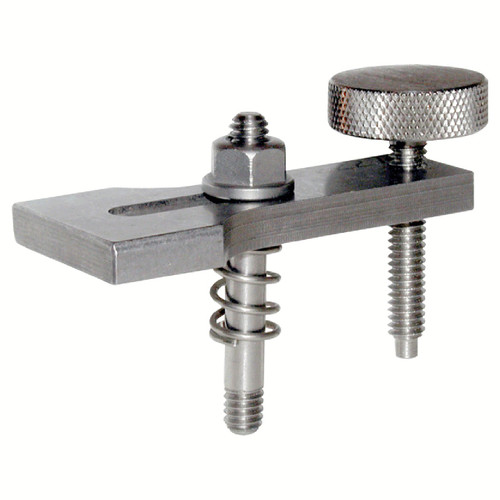

Assembly with Knurled-Head Screw

This assembly includes a Wide-Nose Clamp Strap plus the following Items:

• Knurled-Head Screw
• Flange Nut
• Fixture Stud
• Clamp Spring
• Flat Washer
• Jam Nut

Material

Parts Specification
