Jaw
Swivel-Foot and Hex-Head Spindles

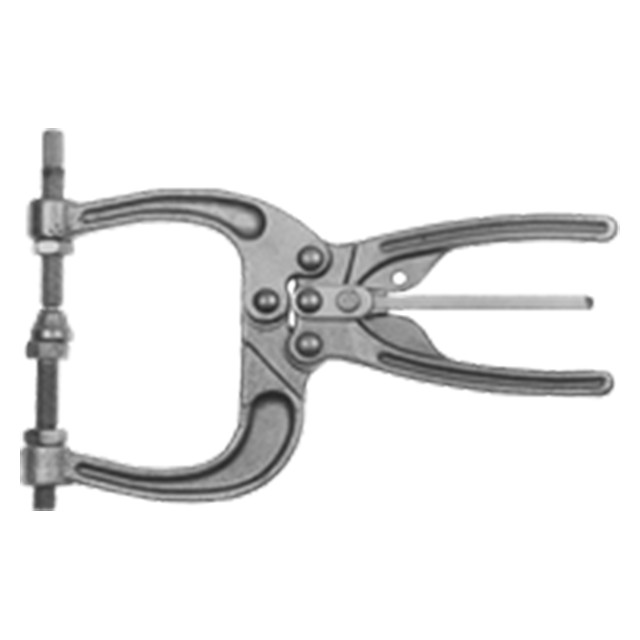

Wide-jaw heavy-duty toggle pliers made of forged steel. Toggle pliers are hand-held, portable clamps that combine a squeezing motion with a toggle action. 3" jaw width in closed position. Two-way quick-release lever for easy opening. 700 lbs. holding capacity.
Clamping Action
Clamped Position
Open Position
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Handles and Jaws | Forged Steel | - | Zinc Plated Clear Chromate | ✔ | ✔ |
| Release Lever | 1008, 1010, and/or 1018 steel | - | Zinc Plated Clear Chromate | ✔ | ✔ |
| Rivet | 400-Series Stainless | - | - | ✔ | ✔ |
Parts Specification
| Description | Holding Capacity (lbs.) | Shipping Weight (lbs.) |
| Swivel-Foot and Hex-Head Spindles | 700lbs. | 1.4lbs. |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Holding Capacity:
700 lbs
Ships:
From Manufacturer
