Carr Lane CL-4B-FSSN-PACKOF3 | 1/2"-13 Thread x 0.390" Diameter Large Feet for Swivel Screw - Type B

Product Information

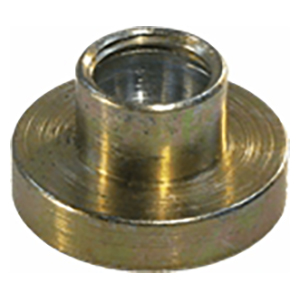

Type B swivel feet, our most popular, are general-purpose feet with a large contact area. The upper diameter is smaller than a swivel screw's minor thread diameter, to allow backing partially into the tapped hole. These feet are available in the following materials and finishes, each available in five sizes to fit swivel-screw bodies from 1/4-20 to 5/8-11 (M6 to M16 in metric). Made in USA.          Steel, Zinc Plated Yellow Chromate          Steel, Black Oxide Finish          Stainless Steel          White Delrin

Patented Design

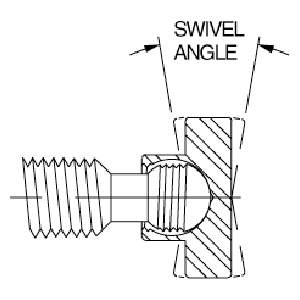

Feet for Swivel Screws are an important part of our patented left-hand-thread swivel-foot system. The ball end of the body screws into the foot for easy installation and removal. Once the ball threads pass beyond the foot threads, the foot can rotate and pivot freely (20 Degree total angle). Foot threads are left-hand to positively prevent accidental backout during use. Delrin feet are optional. Note: Delrin feet are not threaded – they snap on and off.

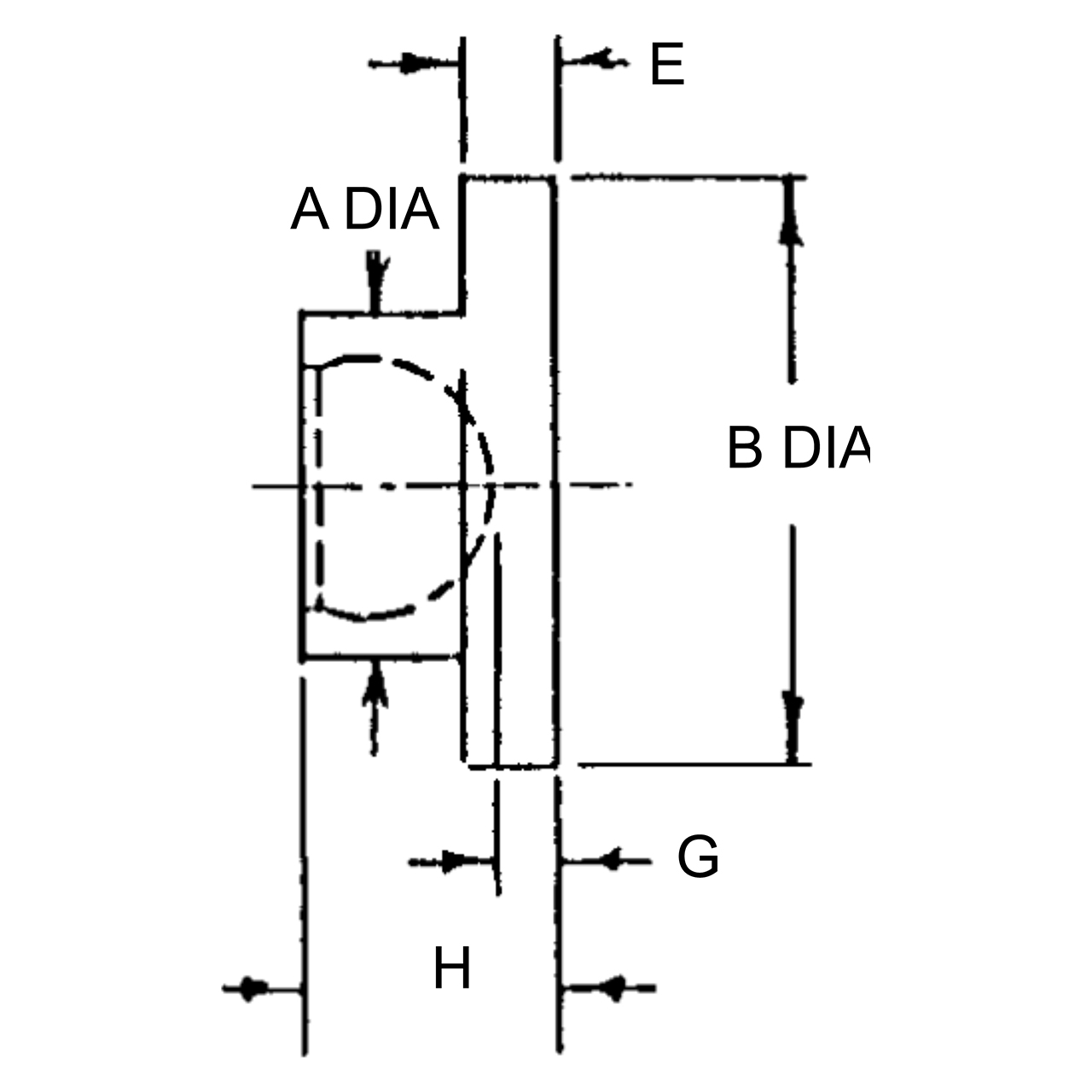

Material

Parts Specification
