Cone Locator Bushings

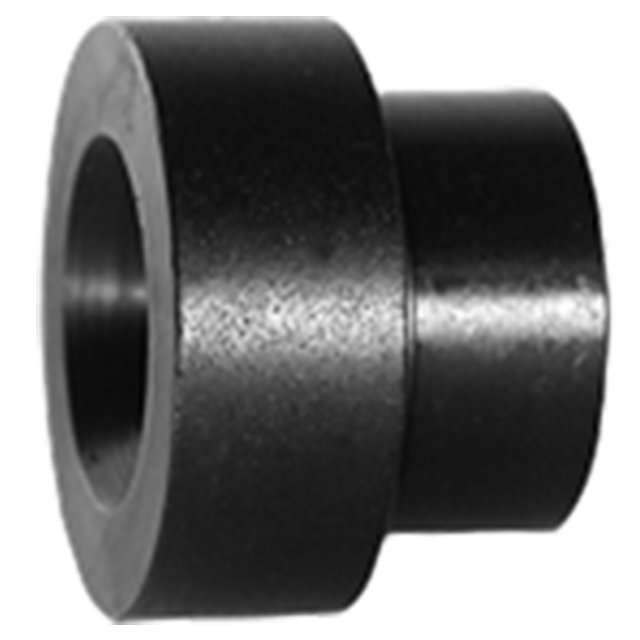

Mating bushing used with a Cone Locator Pin to align two pieces of a fixture. The pin's shank diameter and the bushing's OD are exactly the same size, to allow boring the installation hole in both fixture pieces at the same time for greater accuracy. Made in USA.
Application Information
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 12L15 Steel | Carburized-Hardened | Black Oxide | Yes | Yes |
Parts Specification
| A Diameter (Inch) | B Diameter Nominal (Inch) | B Diameter Actual (Inch) | C (Inch) | D (Inch) | E Diameter (Inch) | Gap Between Pin & Bushing Heads When Assembled (Inch) |
| 3/4" | 1/2" | 0.5014" | 1/4" | 1/4" | 0.370" | 0.050-.068" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Diameter (Inch):
1/2"
Diameter (Decimal Inch):
0.5000"
Diameter (mm):
12.70mm
