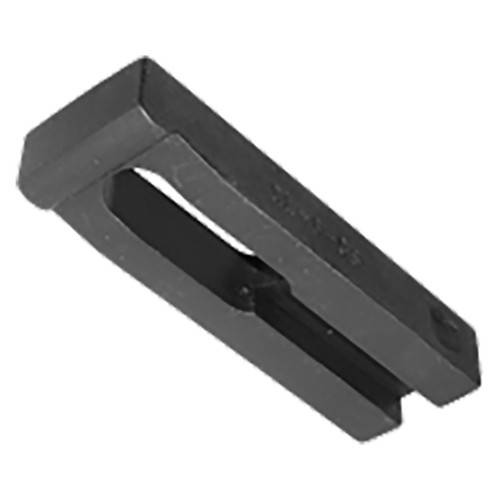

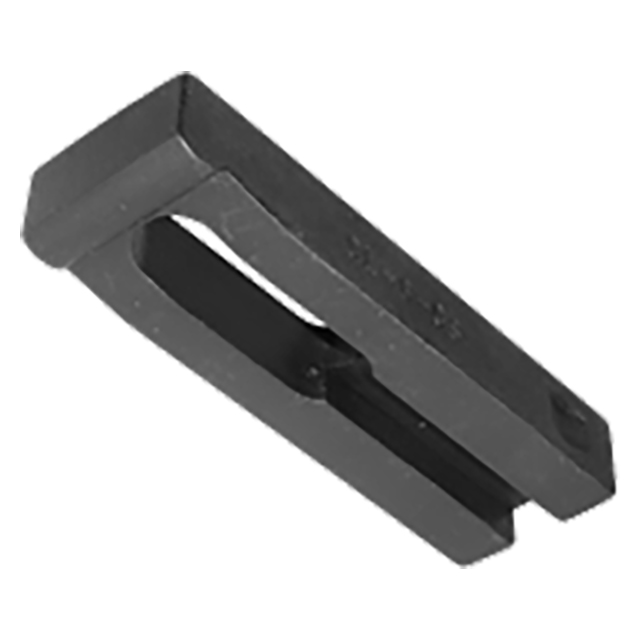

Heavy-duty steel version of the Slotted-Heel Clamp Straps, with a radius nose to provide firm workpiece contact. These clamp straps have a slot underneath to slide straight back for clear loading. An indentation at the rear of each side provides a secure finger grip for retracting the clamp. Made in USA.
Slotted-Heel Clamp Straps have a slot underneath to slide straight back for clear loading.
| Stainless Steel | ||||||||||
| Material | Heat Treat | Finish | DFARS | RoHS | ||||||
| 1018 Steel | Carburized Hardened | Black Oxide | Yes | Yes | ||||||
| A Stud Size (Inch) | B (Inch) | C (Inch) | D (Inch) | E (Inch) | F (Inch) | G (Inch) | H (Inch) | J | K | L (Inch) |
| 3/8-16 or M10" | 1/2" | 1-1/8" | 6" | 2-25/32" | 2-3/8" | 13/32" | 1/2" | 27/64 | 9/32 | 3/8" |
