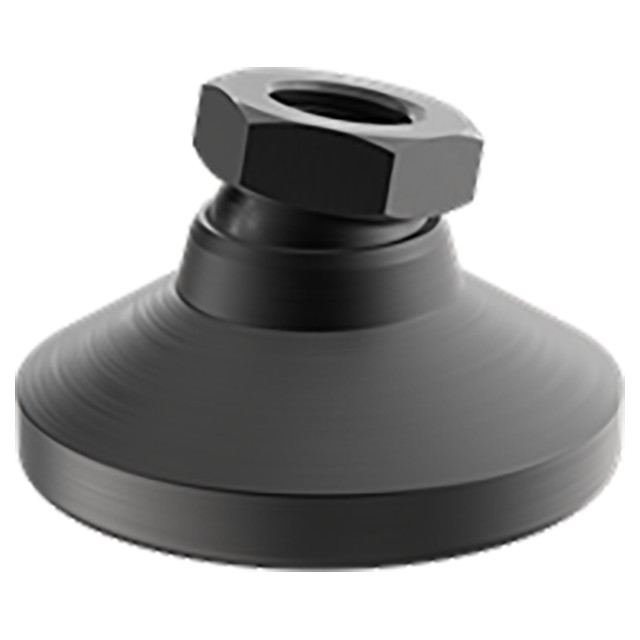

High-quality, heavy-duty leveling foot with a large-diameter pad. Large swivel ball provides high load capacity with a 20ยฐ total swivel angle. Made in USA.
Rated load capacity represents safe static load with standard stud length at maximum extension, with its threads fully engaged for one stud diameter. Safety factor = 2:1. Leveling feet are rated with the same stud length as Stud Leveling Feet (2" for most sizes). Load capacity will drop significantly with longer studs.
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body | 1215 Steel | Carburized-Hardened | Black Oxide | Yes | Yes |
| Pad | 1215 Steel | - | Black Oxide | Yes | Yes |
| A Thread (Inch) | B (Inch) | C Diameter (Inch) | D (Inch) | E (Inch) | F (Inch) | Load Rating (lbs) |
| 5/16-18" | 9/16" | 1-1/8" | 3/16" | 13/16" | 3/8" | 1500 lbs |
