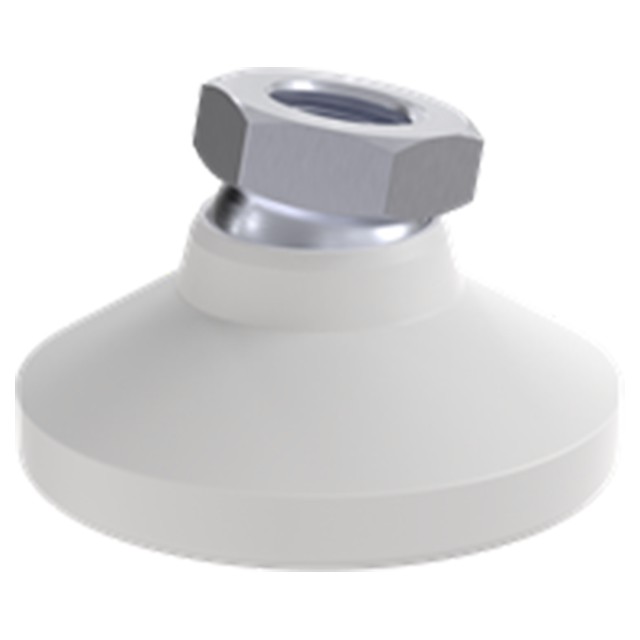

High-quality, heavy-duty leveling foot with a large-diameter Delrin pad. Large swivel ball provides a 20ยฐ total swivel angle. The Delrin pad prevents marring, but has a lower load capacity than a steel pad. Made in USA.
Rated load capacity represents safe static load with the standard-length stud at maximum extension, with its threads fully engaged for one stud diameter. Safety factor = 2:1. Leveling feet are rated with the same stud length as Stud Leveling Feet (2" for most sizes). Load capacity will drop significantly with longer studs.
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body | 1215 Steel | Carburized-Hardened | Yellow Chromate or Clear Zinc Plated | Yes | Yes |
| Pad | White Delrin 500 | - | - | Yes | Yes |
| A Thread (Inch) | B (Inch) | C Diameter (Inch) | D (Inch) | E (Inch) | F (Inch) | Load Rating (lbs) |
| 5/16-18" | 9/16" | 1-1/8" | 3/16" | 13/16" | 3/8" | 250 lbs |
