Carr Lane CL-5-LFN-S | 5/16-18" Thread Leveling Feet

$17.77
Ships:
From Manufacturer
Brand:
Carr Lane
Thread Size:
5/16-18"
Ships:
From Manufacturer
SKU:
50020227
UPC:
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Leveling Feet

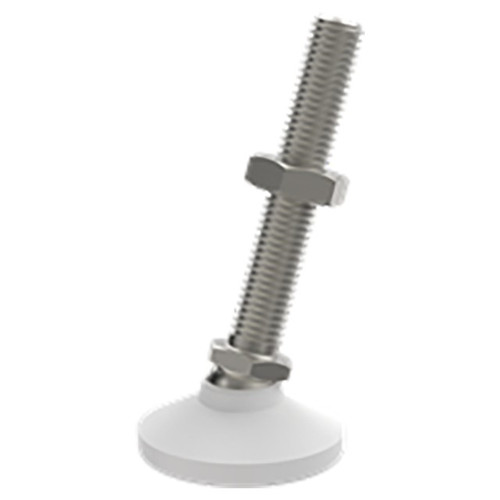

High-quality, heavy-duty leveling foot with a large-diameter Delrin pad. Large stainless-steel swivel ball provides extra corrosion resistance with a 20° total swivel angle. The Delrin pad prevents marring, but has a lower load capacity than a stainless-steel pad. Made in USA.

Design Considerations & Safety Precautions

Rated load capacity represents safe static load with the standard-length stud at maximum extension, with its threads fully engaged for one stud diameter. Safety factor = 2:1. Leveling feet are rated with the same stud length as Stud Leveling Feet (2" for most sizes). Load capacity will drop significantly with longer studs.

Material

ItemMaterialHeat TreatFinishDFARSRoHS
Body300-Series Stainless Steel--YesYes
PadWhite Delrin 500--YesYes

Parts Specification

A ThreadB (Inch)C Diameter (Inch)D (Inch)E (Inch)F (Inch)Load Rating (lbs)
5/16-189/16"1-1/8"3/16"13/16"3/8"250 lbs

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
