Classic, easy-to-grip cast iron clamping knob. Four-prong design provides a firm grip for applications requiring quick tightening and high torque. Made in USA.
Versions Available

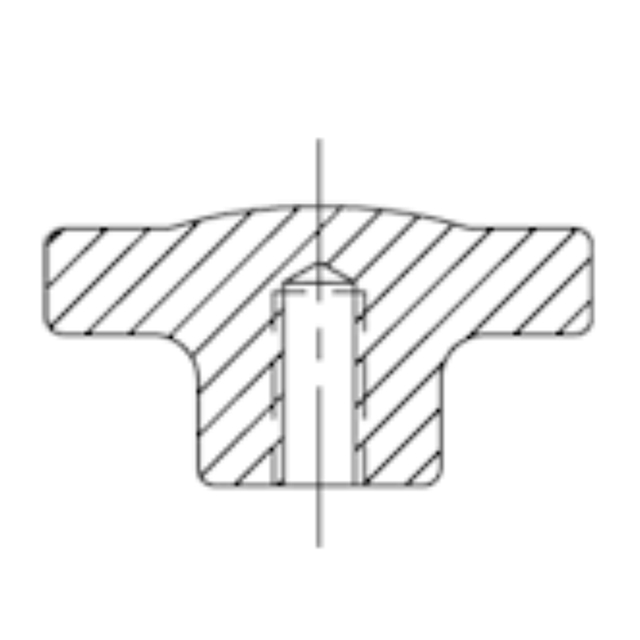

Tapped

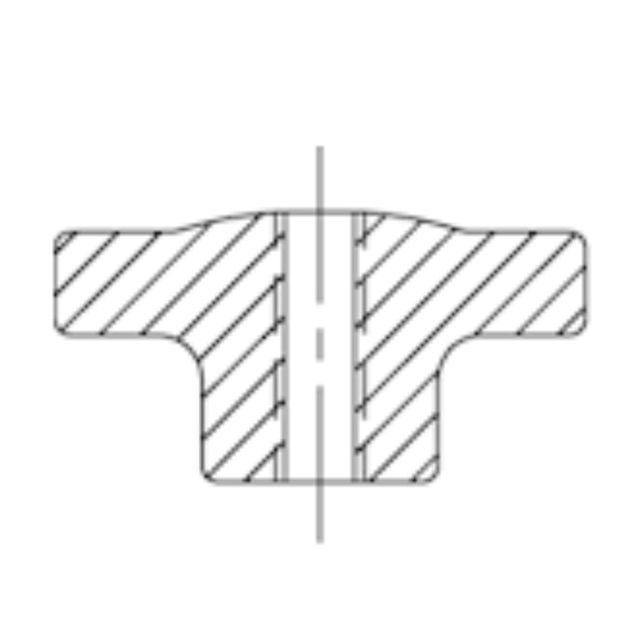

Tapped Through

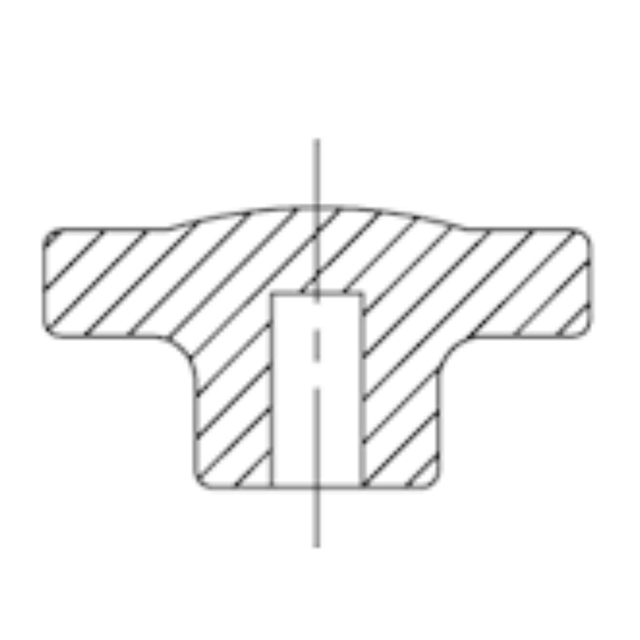

Reamed
Material
| ITEM | MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS |
| Hand Knobs (Cast Iron) | Zinc Plated Clear Chromatel | - | - | ✔ | ✔ |

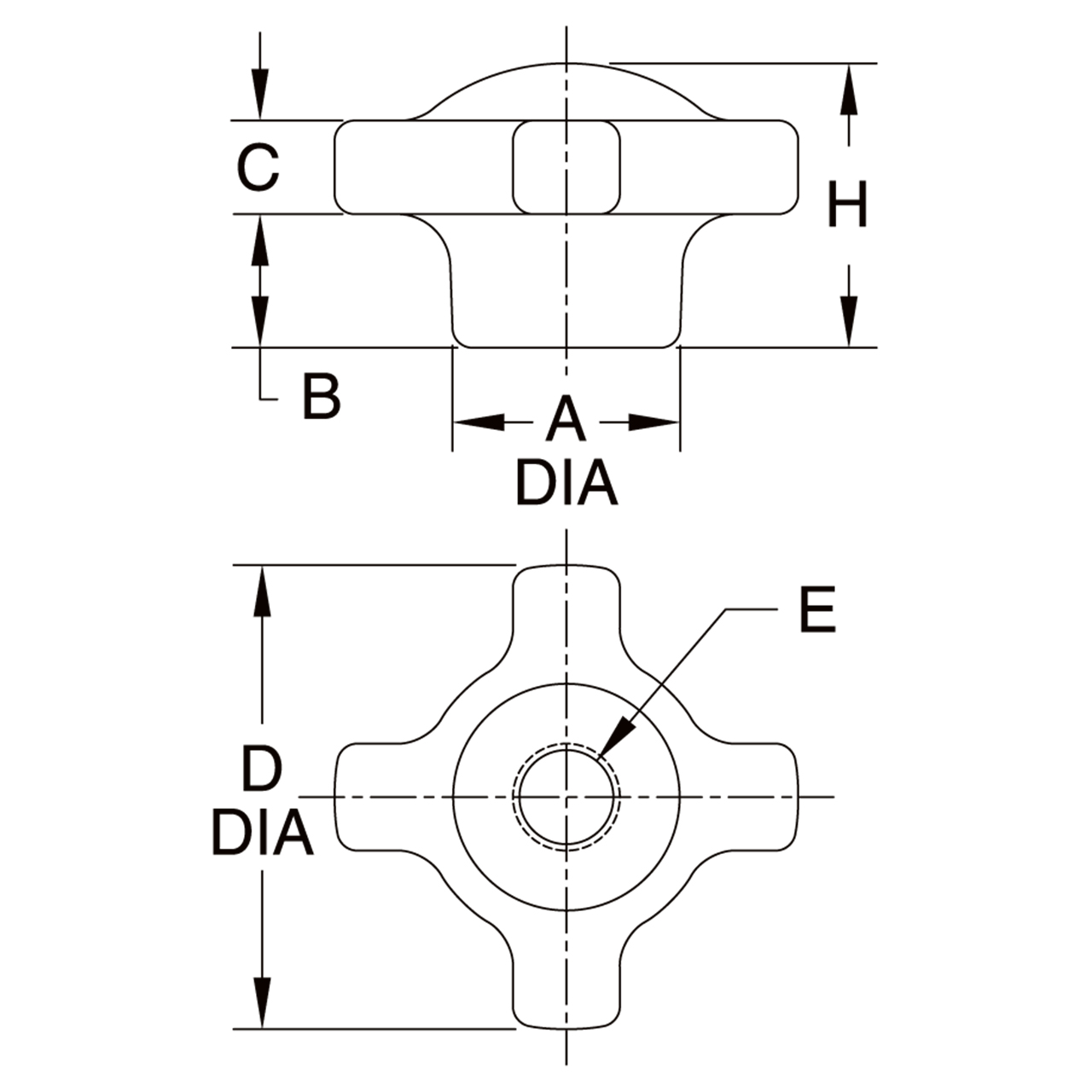

Parts Specification
| D Dia (inch) | A Dia (inch) | B (inch) | C (inch) | H (inch) | E Thread (inch) | E Thread Depth ±.06 (inch) |
| 2-3/4" | 1-3/8" | 3/4" | 1/2" | 1-1/2" | 5/8-11" | 1" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Ships:
From Manufacturer
interval quantity:
1
