Carr Lane CL-50-SAC | 1/2-13" Screw Size Serrated Adjustable Edge Clamp

$110.32
Ships:
From Manufacturer
Brand:
Carr Lane
Ships:
From Manufacturer
SKU:
50017511
UPC:
Weight:
1.43 LBS
Shipping:
Free Shipping

Serrated Adjustable Edge Clamps

These low-profile clamps are ideal for securely gripping the side of a workpiece to keep the top clear for machining, especially when a large clamping range is required to accommodate workpiece-size variations. The serrated jaw slides at a 45° angle to exert clamping force both forward and downward simultaneously. Clamp by turning the socket-head screw in the sliding jaw with a hex wrench. Choice of high-nose or low-nose clamping jaw. V-groove in nose is useful for clamping round parts or corners.The adjustable (slotted) edge clamps shown here are useful for mounting directly on a machine table. The slot is tapered to prevent the clamp from backing off under heavy forces (use two mounting screws on longer clamps).

Application Information

Low Nose Version

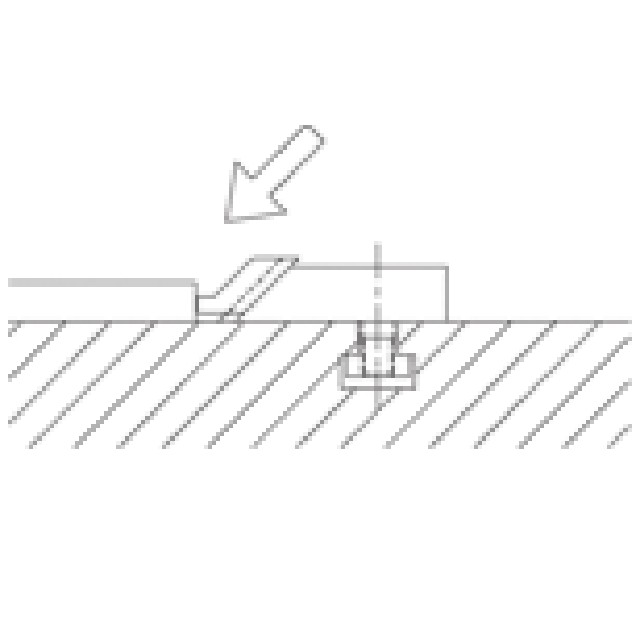

The low-nose version is ideal for thin parts and other applications where extra machining clearance is required

Material

Item Material Heat Treat Finish DFARS RoHS
Body and Nose 1018 Steel Carburized-Hardened Black Oxide Yes Yes
TClamping Screw 4140 Steel Heat Treated Rc 43-45 Black Oxide Yes Yes

Parts Specification

Mounting Screw Size (Inch)A (Inch)B (Inch)C (Inch)G (Inch)H (Inch)K (Inch)L (Inch)M (Inch)N (Inch)P (Inch)Q (Inch)
1/2-13"5-1/2"7/8"1-1/2"2-1/8"1/2"5/16"4-11/16"1/4"1/4"1/4"2-1/2"
