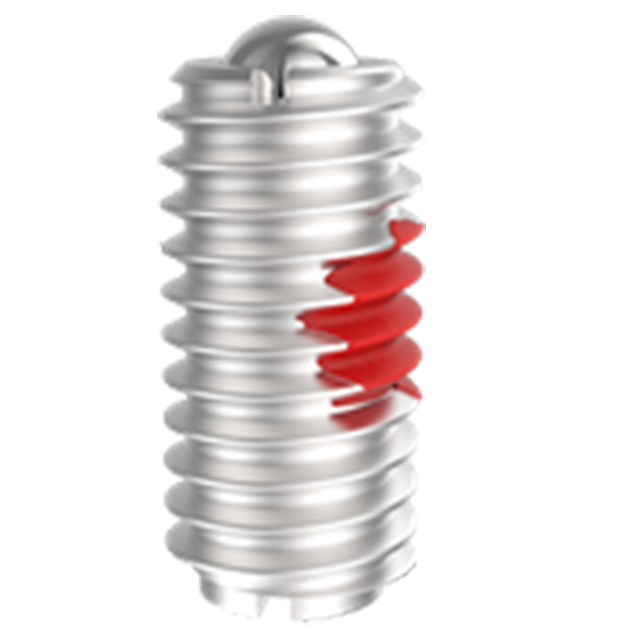

Ball Plungers-Stainless Steel
The version has a stainless steel body for extra corrosion resistance, and a 440C stainless steel ball. Made in USA.
Application Information
Internal View
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body | 300-Series Stainless Steel | - | - | Yes | Yes |
| Ball | 440C Stainless | - | - | Yes | Yes |
| Spring | 302 Stainless | - | - | Yes | Yes |
Parts Specification
| A Thread (Inch) | End Force | Initial End Force (lbs) | Final End Force (lbs) | B (Inch) | C (Inch) | D Diameter (Inch) |
| 5/16-18" | Light | 2 lbs | 4-1/2 lbs | 37/64" | 0.040" | 0.156" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Ships:
From Manufacturer
