Carr Lane CL-500-PTC-LC | 200 lbs. Holding Capacity Air-Powered Toggle Clamp

CL-500-PTC Series-200lbs.

Open Arm

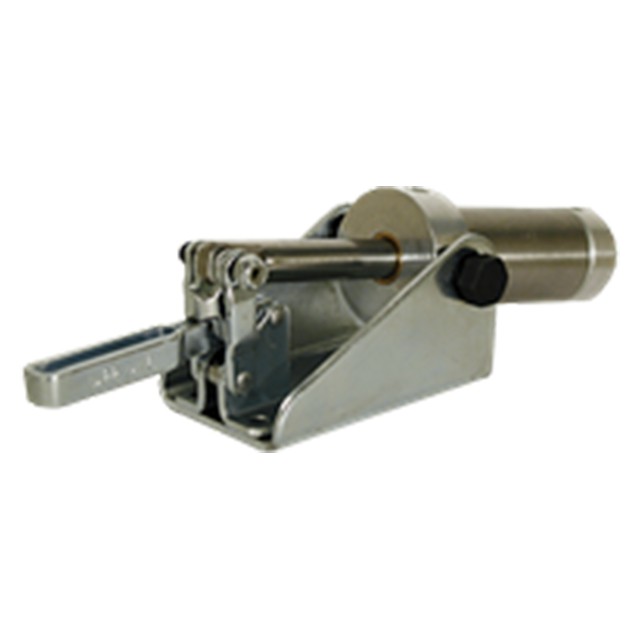

Small-yet-powerful air clamp with a long open arm. Similar to a wide-opening vertical-handle toggle clamp, except operated by an air cylinder instead of by hand. Toggle linkage provides high holding capacity and insures positive mechanical locking even if air pressure fails. The clamping arm opens 100°. Slotted open arm provides adjustable spindle location. 200 lbs. holding capacity.

This clamp is operated by a 1-1/4"-bore double-acting air cylinder, with Buna-N seals for -20° to +200°F operating temperature. Two 1/8-NPT ports. 100-psi maximum input air pressure exerts 200 lbs. maximum clamping force at the center of the arm.

Optional Position Sensing

This clamp is optionally available with position-sensing capability, incorporating a special air cylinder with a magnetic piston ring. This allows monitoring cylinder position with either a Hall-effect switch or reed switch.

Material

Parts Specification
