Gripper Contact Bolts
Fully threaded contact bolt with a carbide-tipped gripper head. Can be used as an adjustable support, or as a contact bolt in a clamp.
Application Information
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| Steel | Carburized-Hardened | Black Oxide,with brazed carbide gripper | ✔ | ✔ |

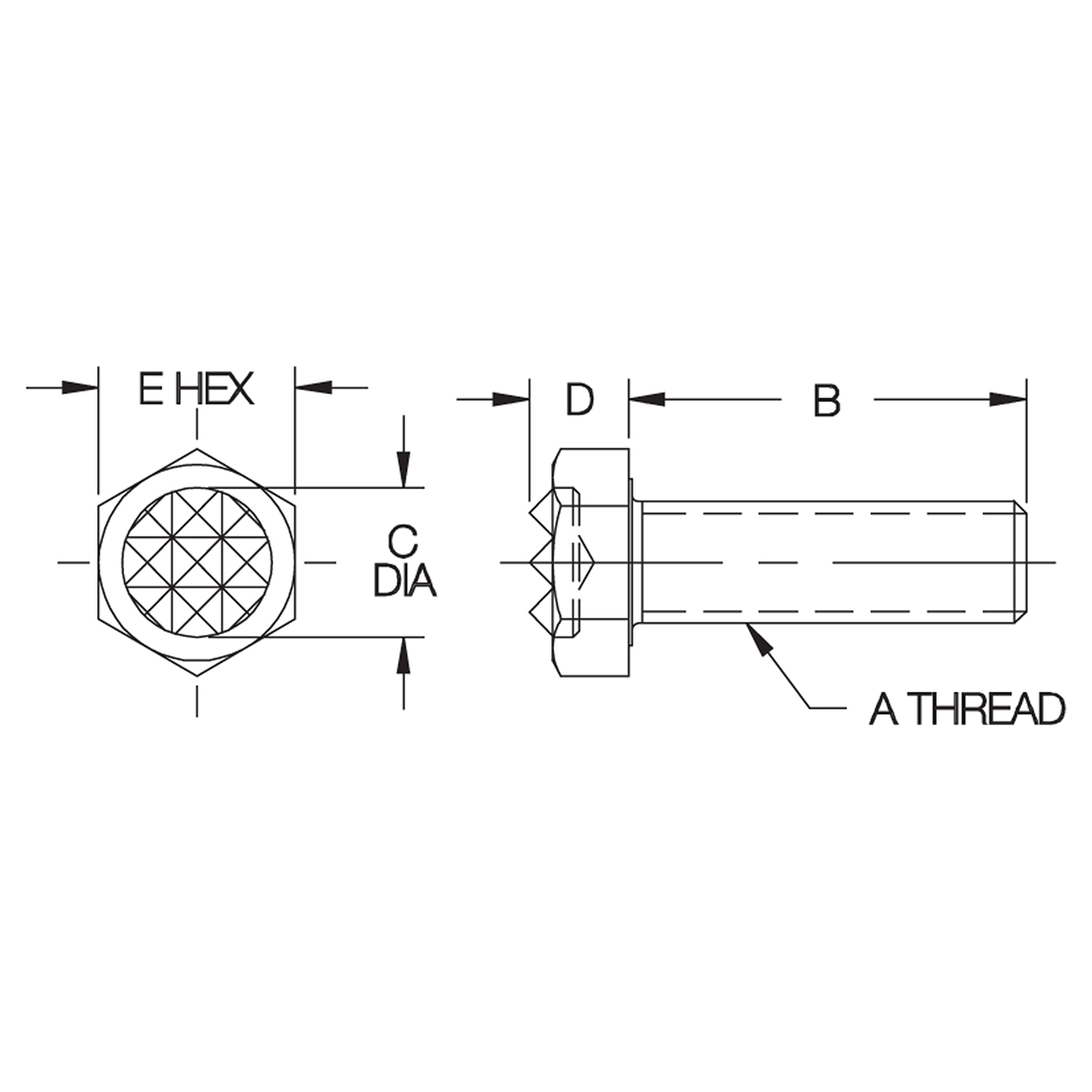

Parts Specification
| A Thread | B | C Diameter (Inch) | D | E | Serrations | Serration Dimensions |
| 5/16-18 | 1 | 3/8 | 1/4 | 1/2 | FINE | 0.125x90° |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Ships:
From Manufacturer
