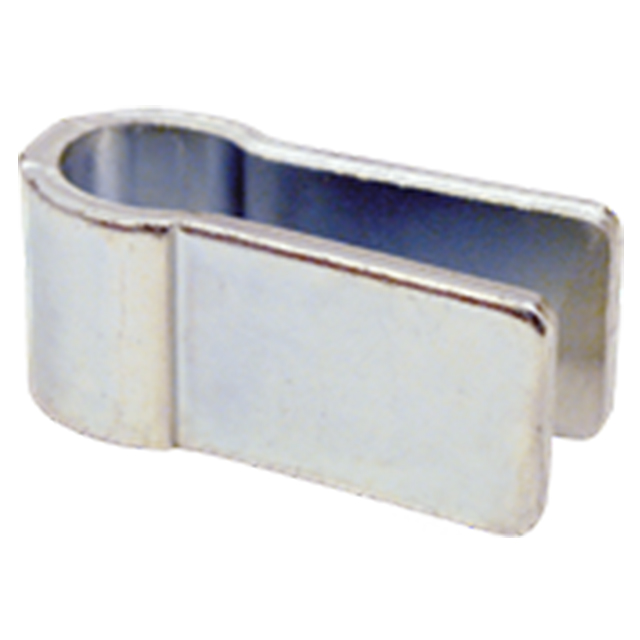

Bolt Retainers
Use for mounting spindles on solid-arm clamps. Weld-on bolt retainer at desired arm length and spindle angle.
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 1008, 1010, or 1018 steel | - | Zinc Plated Clear Chromate | Yes | Yes |
Parts Specification

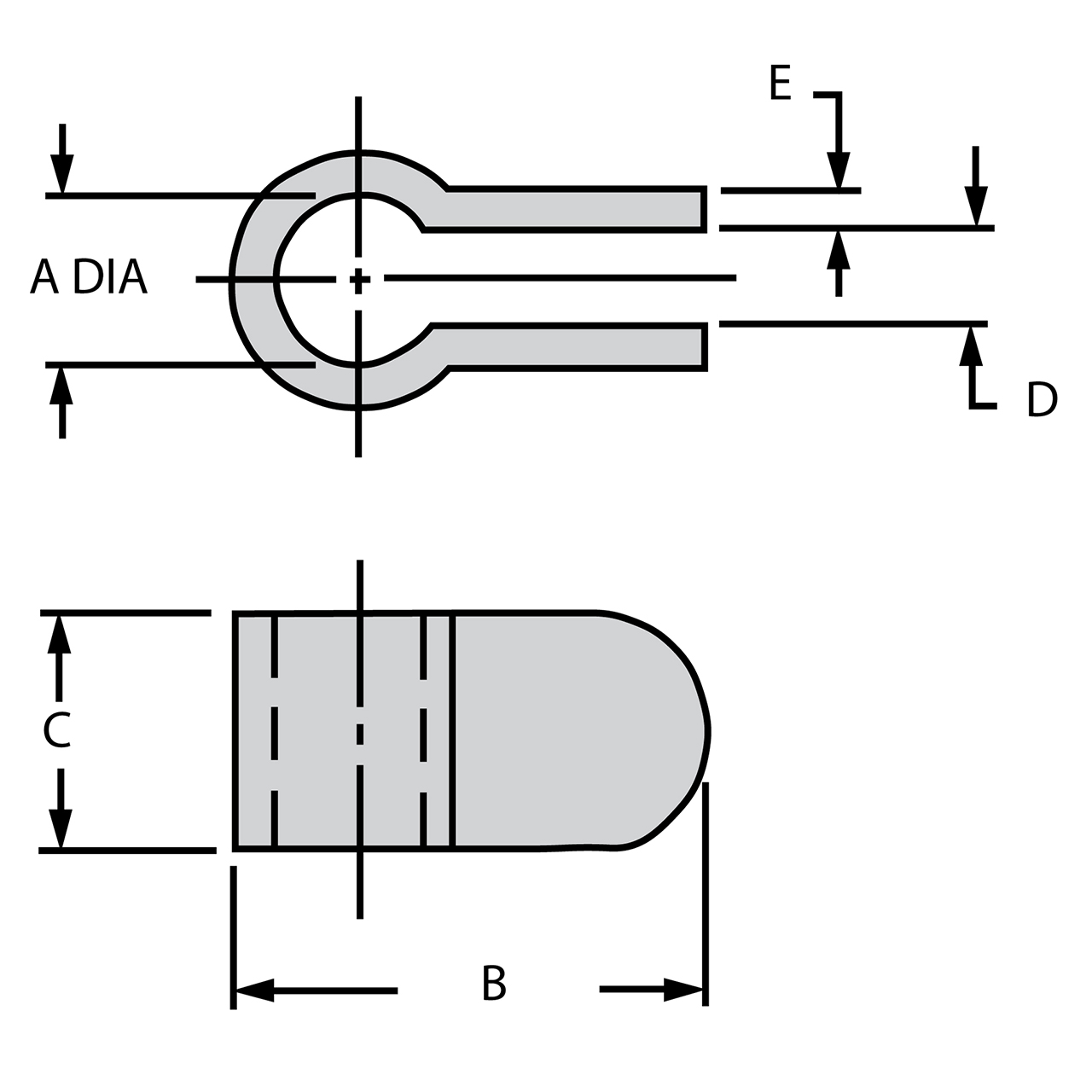

| Spindle Size (Inch) | A Diameter (Inch) | B (Inch) | C (Inch) | D (Inch) | E (Inch) |
| 5/8-11 or M16" | 11/16" | 1-7/8" | 1-1/4" | 3/8" | 1/8" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Size:
5/8-11"
