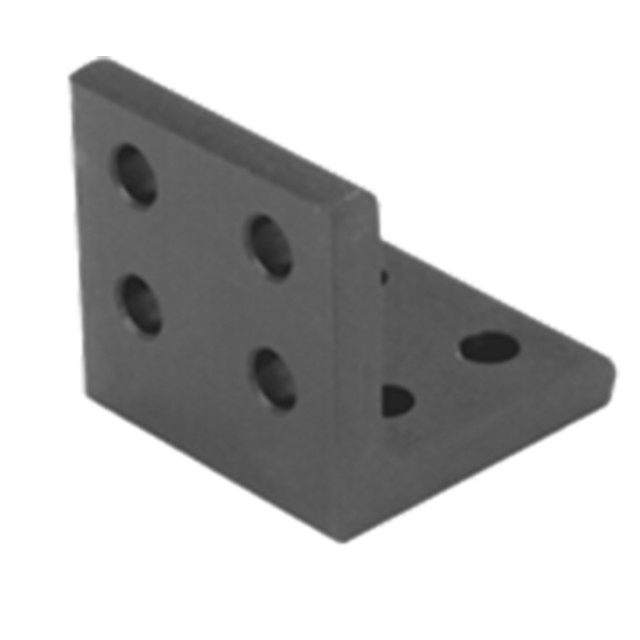

Carr Lane CL-512-ABLB | 5/16"-24 Thread Angle Brackets with Locating Hole

Angle Brackets with Locating Holes

Extremely accurate angle brackets with precision locating holes. These angles are ideal for bolting together like an erector set to create large-scale tooling. Ideal for assembly and welding fixtures.The 90° angle and eight locating holes are held to close tolerances to maintain good accuracy in built up tooling. Made in USA.

Application Information

Angle-Bracket Locating Bolts

These precision bolts are required to accurately fasten angle brackets to each other, and to other tooling. The ground locating diameter provides a slight press fit when angles are bolted together. Order bolts and hex nuts separately below.

Material

Parts Specification
