Carr Lane CL-53-SSC | 5/16"-18 Thread Swivel Screw Clamp

Swivel Screw Clamps Ball Foot

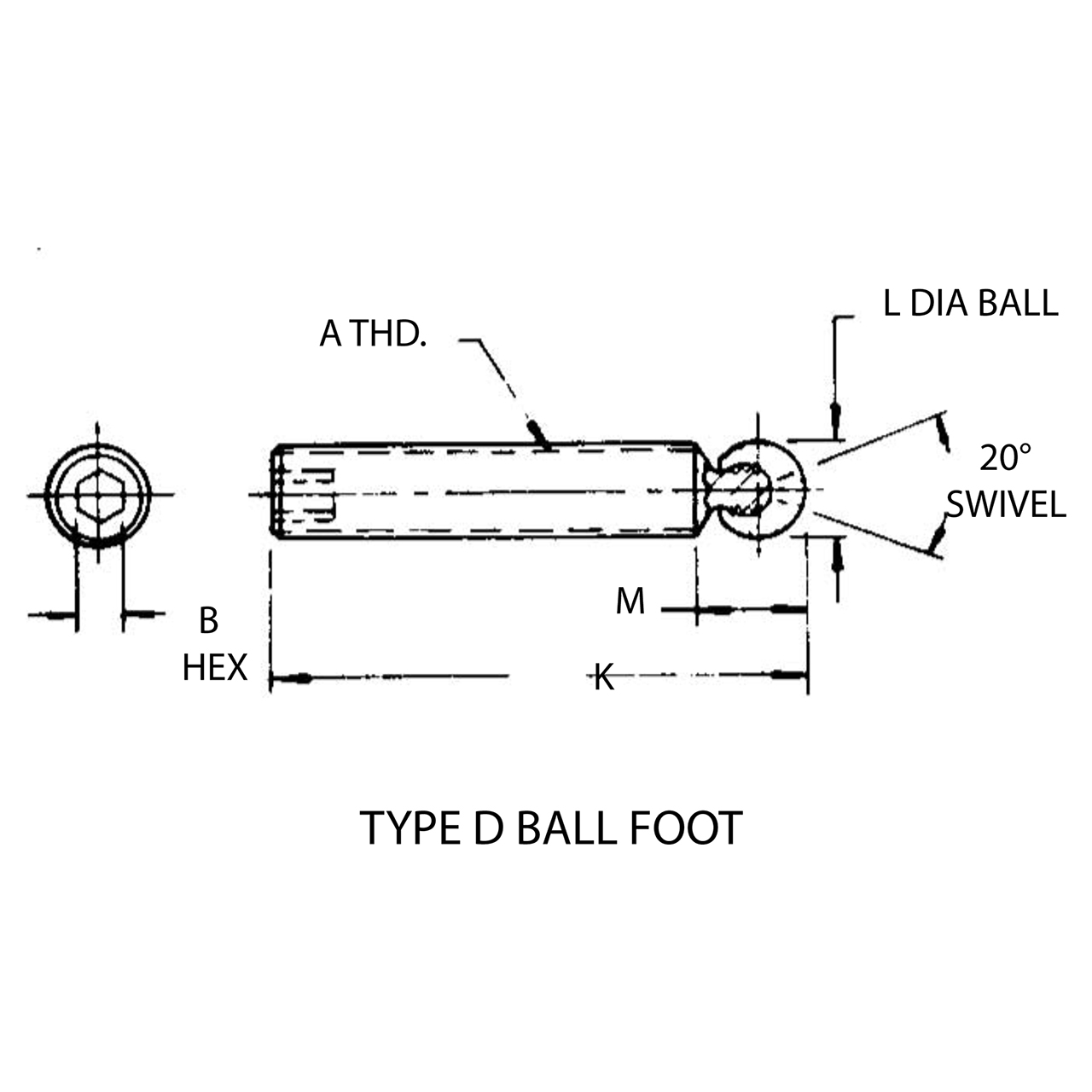

High-quality clamping screw that accepts a wide assortment of swivel feet. The swivel screws include the Type D ball foot. Socket head allows applying strong clamping force using a hex wrench. Made in USA.

Swivel Foot

The ball end of the body screws into the foot for easy installation and removal. Once the ball threads pass beyond the foot threads, the foot can rotate and pivot freely (20° total angle). Foot threads are left-hand to positively prevent accidental backout during use.

Design Considerations

For full hex-socket strength, the socket end of the body should be entirely inside its tapped hole during final tightening.

Material

Parts Specification
