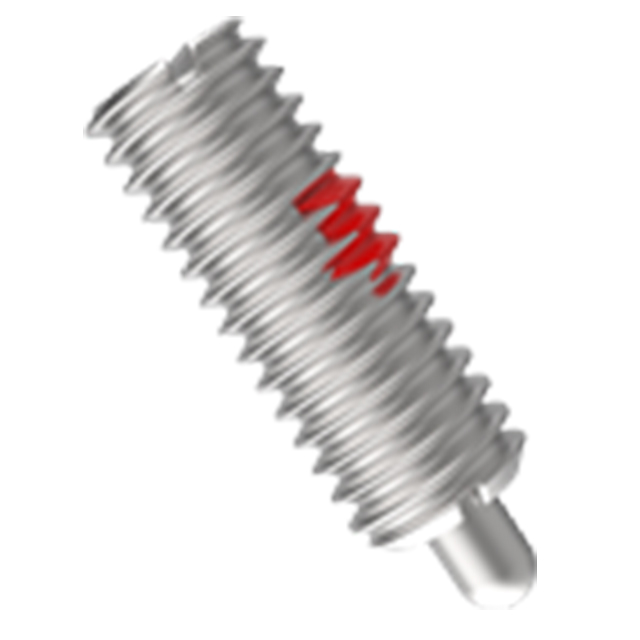

Short Spring Plungers with Extended Travel
The body length of a Short Spring Plunger while providing the longer stroke of a standard Spring Plunger. The version has a stainless steel body and plunger nose, for extra corrosion resistance. Made in USA. Install and/or adjust from either end. When using the slot at the plunger end to install, use a Plunger Wrench instead of a screwdriver to avoid over-compressing the spring. A thread-locking element holds the unit securely in place after installation.

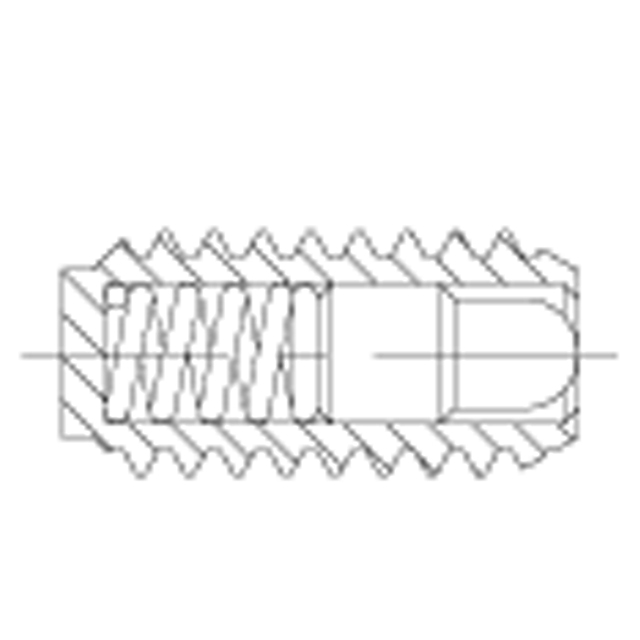

Internal View
Nose Retracted
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS | |
| Body and Plunger Nose | 300-Series Stainless Steel | - | - | Yes | Yes | |
| Spring | 302 Stainless | - | - | Yes | Yes |

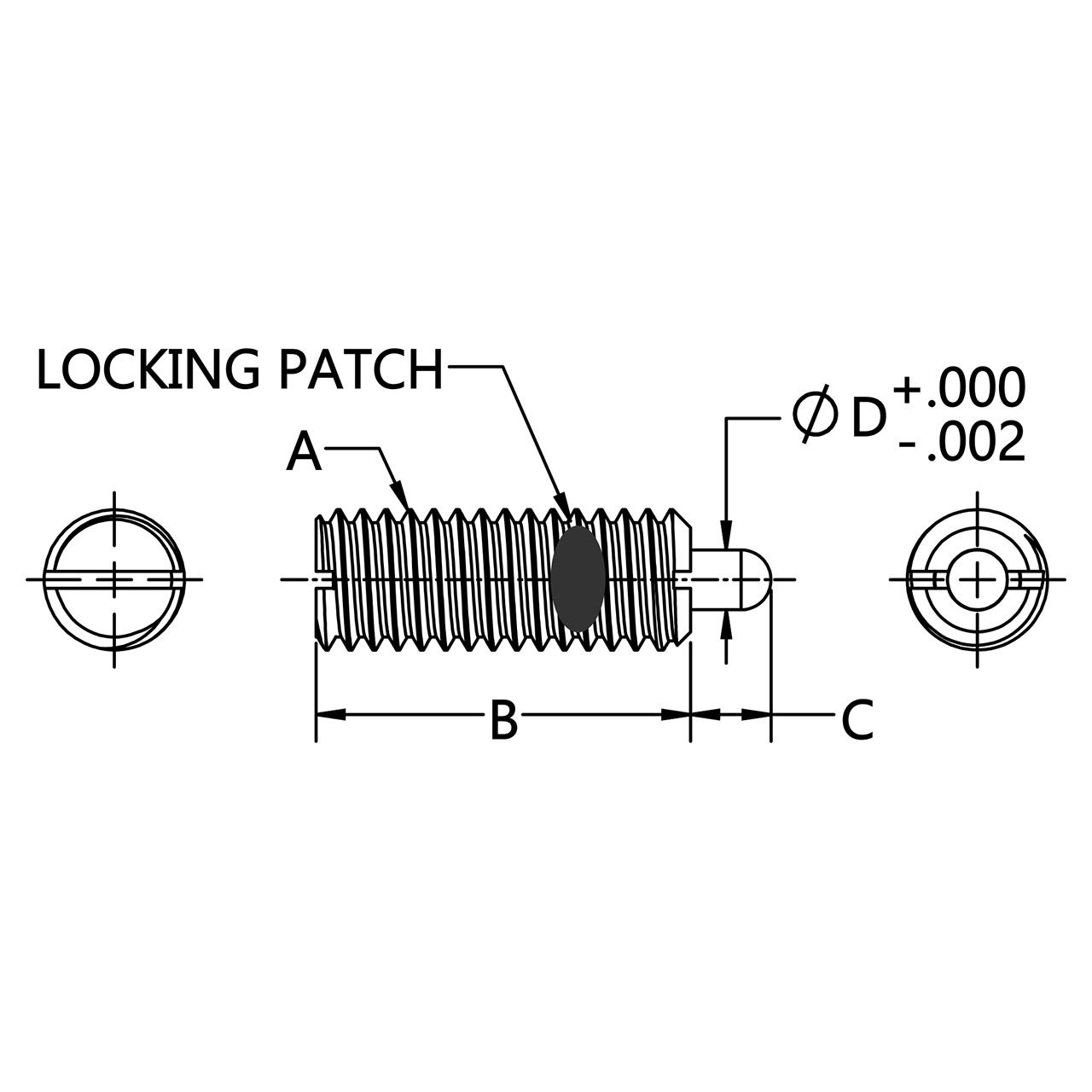

Parts Specification
| A Thread (Inch) | Initial End Force (lbs) | Final End Force (lbs) | B | C±.010 | D Diameter |
| 5/16-18" | 2.5 lbs | 10.5 lbs | 9/16 | 0.187 | 0.135 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Ships:
From Manufacturer
