Carr Lane CL-550-FSHR-1 | 1/4-20" Thread Forged Swivel Hoist Ring

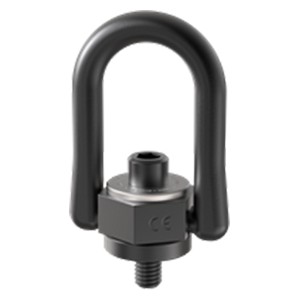

Product Information

Carr Lane’s Forged Swivel Hoist Rings feature a forged lifting ring and simpler construction for easy disassembly. Swivel Hoist Rings pivot 180 Degree and swivel 360 Degree simultaneously to allow lifting from any direction. Available with inch or metric threads in load capacities up to 10,000 lbs, many with a choice of bolt length. Complies with ASME B30.26 and CE.

Technical Information

Complies with ASME B30.26 and CE.  Hoist Ring Technical Information Hoist Ring Safety Precautions Types of Hoist Rings

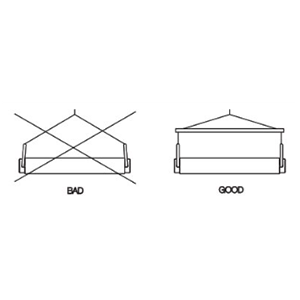

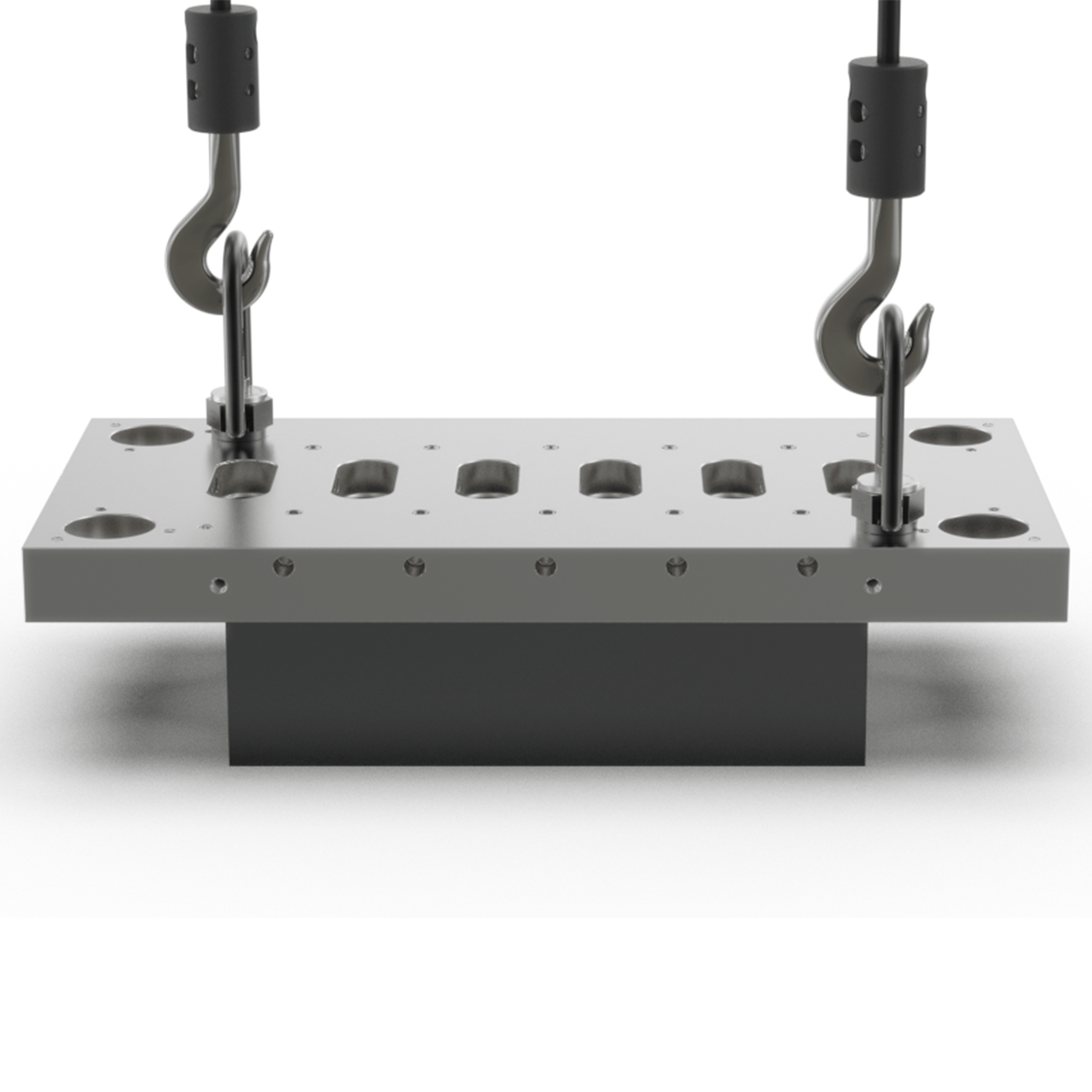

Application Information

Videos

Forged Swivel Hoist Ring Application Forged Swivel Hoist Ring Application

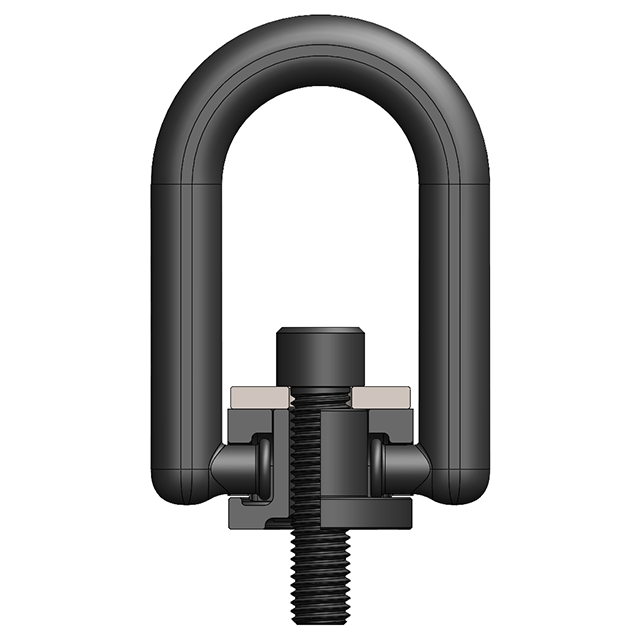

Internal View

Installation

Fasten using the installation torque specified in the dimension table. Always install so that the hoist ring can pivot and swivel freely. Some hoist rings are available with a choice of bolt lengths. Use the shortest bolt length only for steel plates, the other lengths for weaker materials and for through-hole mounting with a washer and nut.

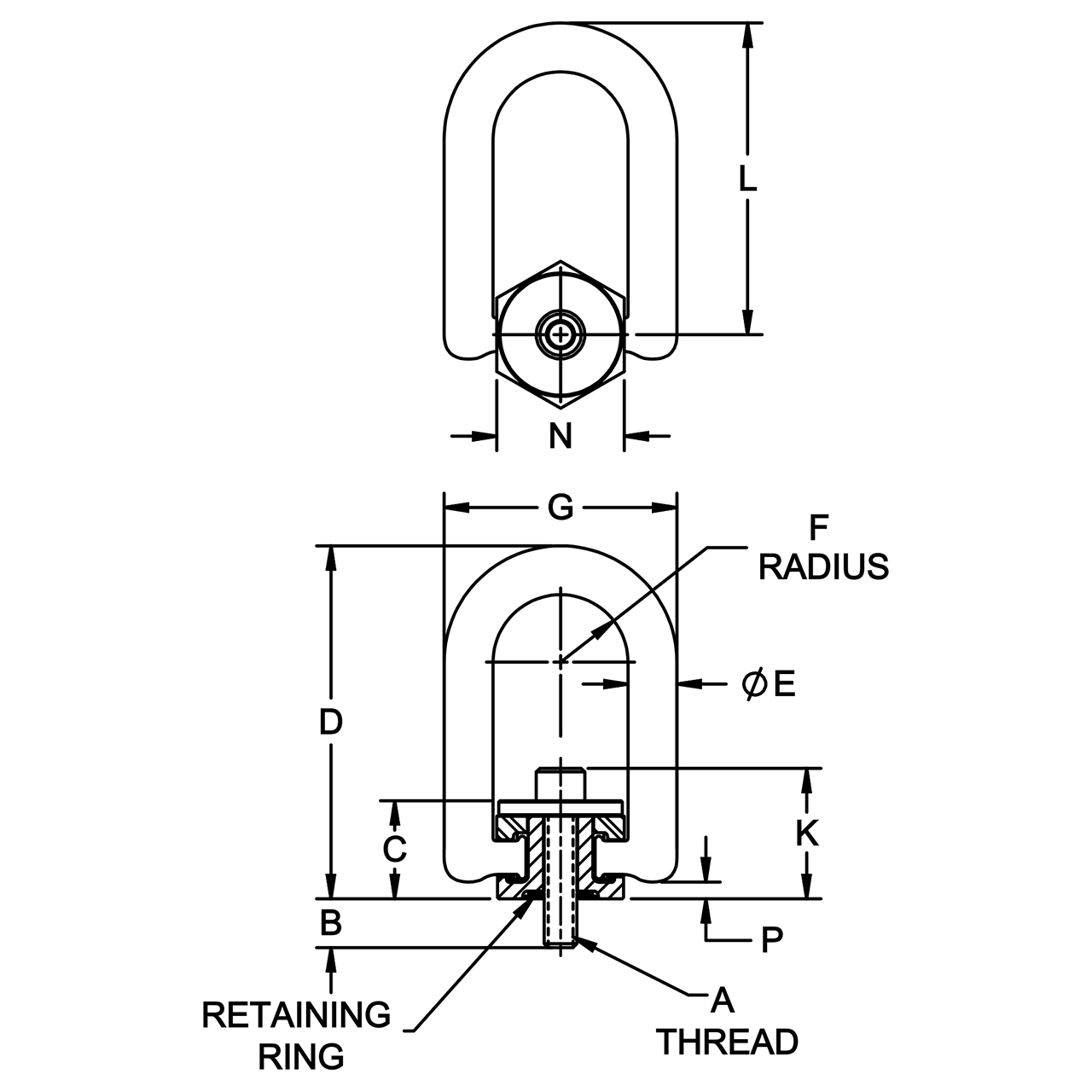

Material

Parts Specification
