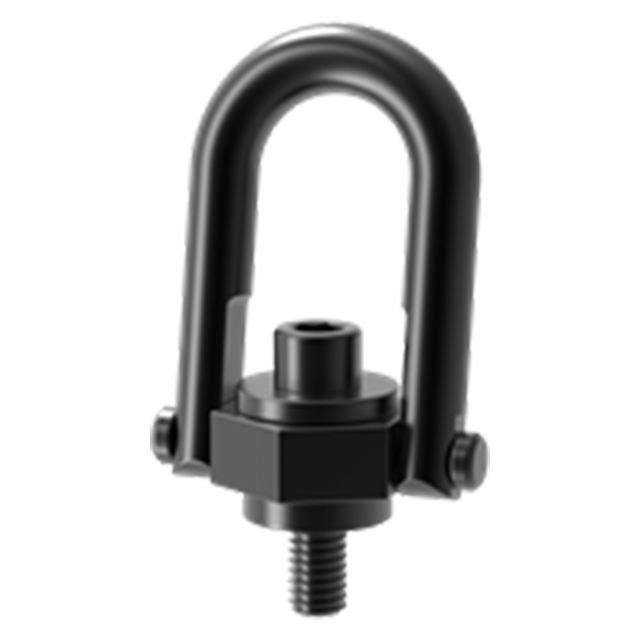

Carr Lane CL-550-SHR-2 | 1/4-20" Thread x 3/8" Diameter Swivel Hoist Ring

Description

The Carr Lane CL-550-SHR-2 is a safety-engineered swivel hoist ring for industrial lifting rigging. Made with a 1/4-20 thread and 3/8 inch diameter, it supports compact lifting setups with dependable strength. This 1/4-20 swivel hoist ring with a 3/8 diameter is built to pivot 180 degrees and swivel 360 degrees simultaneously.
That motion allows lifting from multiple directions while helping maintain proper load alignment. With a 550 lb load rating, it is suited for lighter-duty lifting and positioning applications. The alloy steel construction is heat treated for durability and long service life. A black oxide finish is standard, with electroless nickel available for corrosion resistance in harsher environments. The threaded hoist ring machine lifting hardware design allows secure installation into compatible equipment.
It is intended for use where safe rotation and directional flexibility are essential. The 1/4-20 thread swivel hoist ring lifting format makes it practical for compact fixtures and machine handling points. Installation torque is specified at 5 ft-lbs for proper mounting performance. This 3/8 inch diameter swivel hoist ring rigging component is engineered to support controlled movement during hoisting.
Carr Lane’s safety swivel design helps reduce binding while improving load handling efficiency. It is a reliable choice for shops that need a swivel hoist ring for industrial lifting rigging. Made in the USA, the Carr Lane CL-550-SHR-2 offers trusted quality for workholding and rigging applications.

Product Features and Benefits

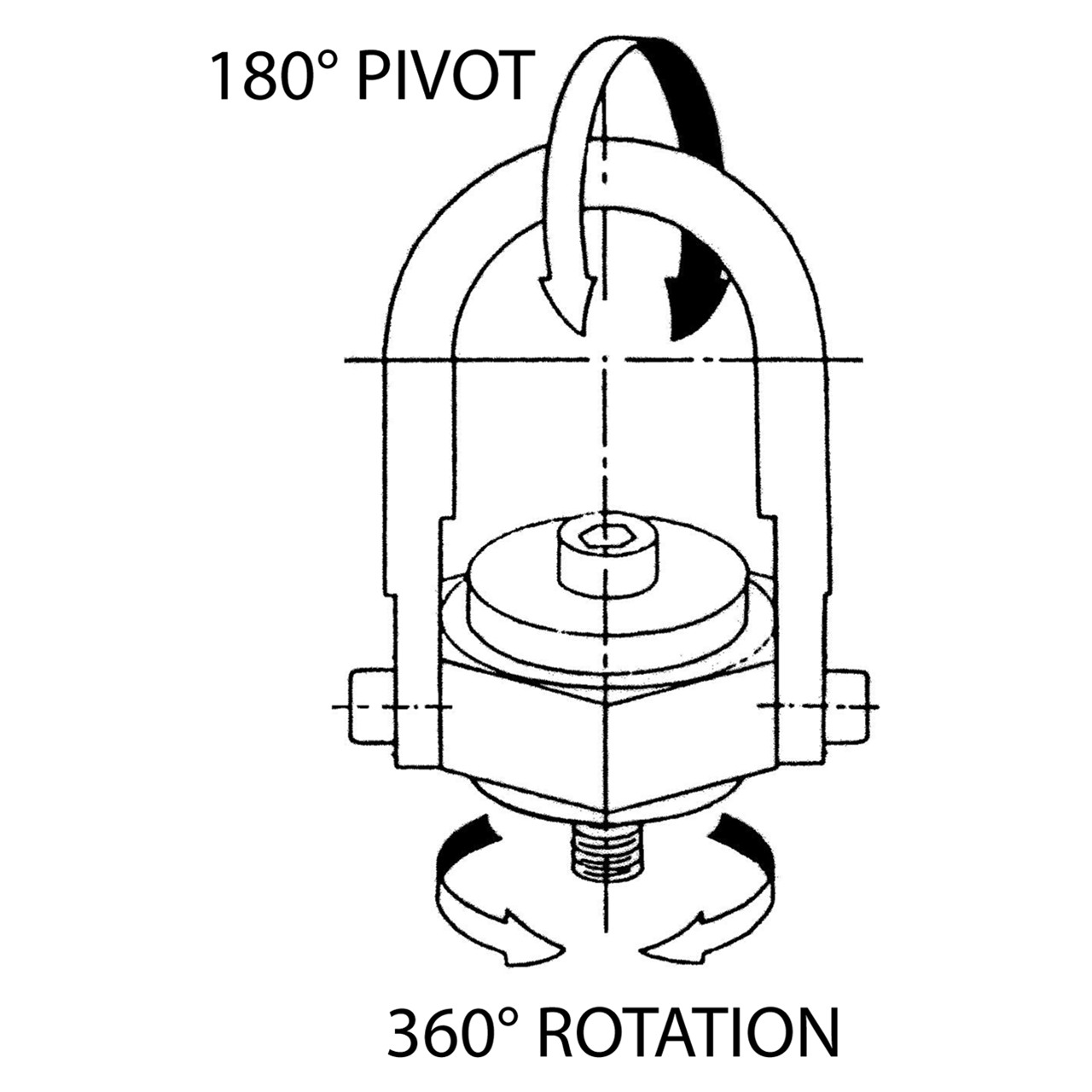

180° Pivot and 360° Swivel

The 360 degree swivel lifting ring workholding design allows the load to move freely from different lifting angles.

550 lb Load Capacity

Built as Carr Lane hoist ring load capacity hardware, this model supports lighter lifting tasks with dependable performance.

Heat-Treated Alloy Steel Body

The swivel hoist ring for industrial lifting rigging uses heat-treated alloy steel for strength and wear resistance.

Compact 1/4-20 Thread Size

The 1/4-20 thread swivel hoist ring lifting design fits compact mounting points and smaller machine interfaces.

Optional Corrosion-Resistant Finish

Electroless nickel finishing helps extend service life in corrosive or marine environments while preserving full load capacity.

Frequently Asked Questions

What is the Carr Lane CL-550-SHR-2 used for?

The Carr Lane CL-550-SHR-2 is used for safe lifting, rigging, and directional load handling in industrial applications.

How much weight can this hoist ring support?

This 1/4-20 swivel hoist ring with a 3/8 diameter has a load rating of 550 lbs.

Does the ring rotate in more than one direction?

Yes, it pivots 180 degrees and swivels 360 degrees simultaneously for flexible lifting alignment.

What material is the hoist ring made from?

The threaded hoist ring machine lifting hardware is made from heat-treated alloy steel.

Is this hoist ring suitable for corrosive environments?

Yes, the optional electroless nickel finish makes the swivel hoist ring for industrial lifting rigging suitable for corrosive conditions.
