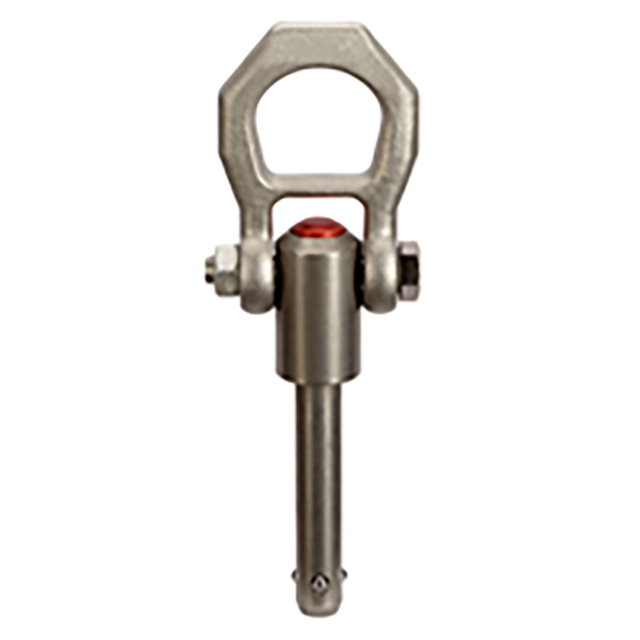

Lifting Pins (Stainless Steel)
Lifting Pins are corrosion-resistant single-acting Ball Lock Pins with a solid, one-piece body and four balls for high tension loads. Positive locking until released by pushing the button. Sturdy forged shackle for heavy lifting. Made in Germany.
Technical Information
Ball Lock Pins are positive locking until released by pushing the button, which moves the center spindle forward to allow the balls to retract.
Application Information
Material
Material
| Stainless Steel | |||||
| Item | Material | Heat Treat | Finish | ||
| Pin | Stainless Steel | Precipitation-Hardened | - | ||
| Button | Aluminum | - | Red-Anodize | ||
| Shackle | Stainless Steel | - | - | ||
| Spring | Stainless Steel | - | - | ||
Parts Specification
| A Diameter Nominal (Inch) | A Diameter Actual (Inch) | Grip Length+.024/-0.000 | B (Inch) | C ±.04 | D (Inch) | E Diameter (Inch) | F (Inch) | G (Inch) | H (Inch) | K | L (Inch) | M (Inch) |
| 3/8" | 0.3720/.3735" | 1.50 | 0.44" | 0.40 | 1.18" | 0.85" | 1.93" | 1.94" | 1.50" | 1.01 | 1.06" | 0.37" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Diameter (Inch):
3/8"
Grip Length (mm):
38.10mm
Grip Length (Decimal Inch):
1.5000"
Grip Length (Inch):
1-1/2"
Diameter (Decimal Inch):
0.3750"
Diameter (mm):
9.53mm
