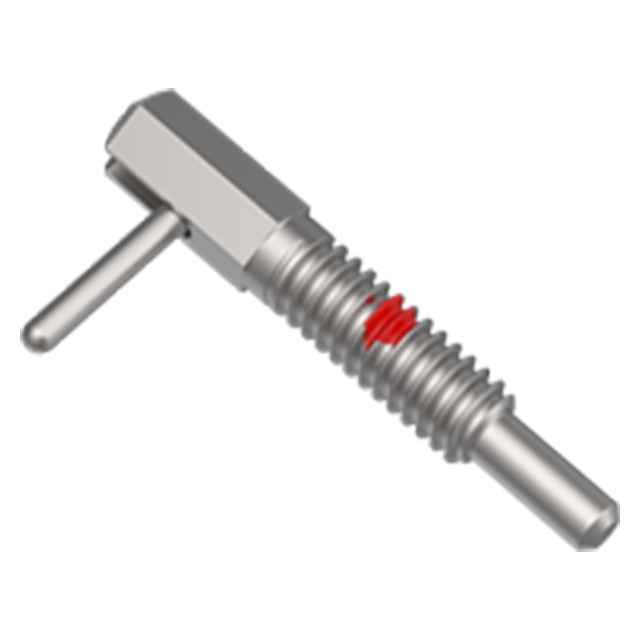

Hand-Retractable Plungers-L Handle, Long Stroke
Long-stroke spring-loaded plunger that locks in retracted position. Convenient L handle for quick retraction and locking. Made in USA.
Operation
Extended
Retracted
Material
| Steel | |||||
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Plunger | 1215 Steel | Carburized-Hardened | Zinc Plated Clear Chromate | Yes | Yes |
| Body and Knurled Head | 1215 Steel | - | Zinc Plated Clear Chromate | Yes | Yes |
| Spring | 17-7PH Stainless Steel | - | - | Yes | Yes |
Parts Specification
| A Thread | Initial End Force (lbs) | Final End Force (lbs) | B Diameter (inch) | C (inch) | D (inch) | E (inch) | G (inch) | H (inch) | J Diameter (inch) |
| 3/8-16 | 0.75 lbs. | 3.75 lbs. | 0.250" | 9/16" | 1-1/16" | 2" | 3/8" | 15/16" | 9/64" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Thread:
3/8-16"
interval quantity:
1
