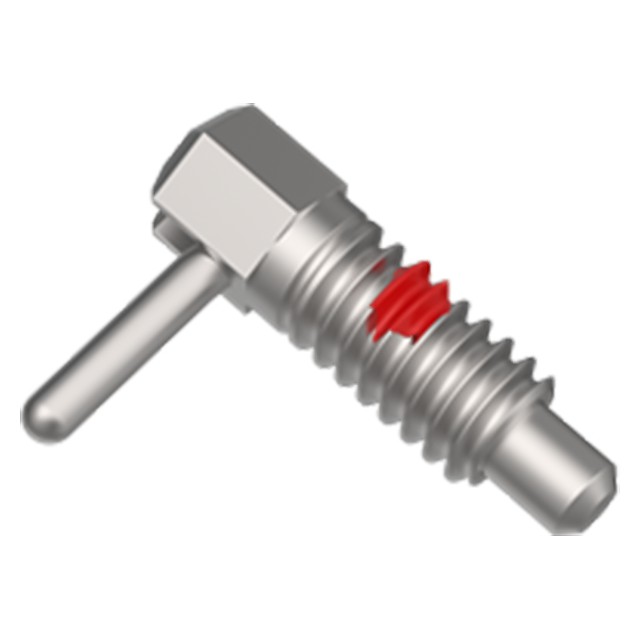

Spring-loaded plunger that locks in retracted position. Convenient L handle for quick retraction and locking. Made in USA.
Extended
Retracted
| Steel | |||||
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Plunger | 1215 Steel | Carburized-Hardened | Zinc Plated Clear Chromate | Yes | Yes |
| Body and Knurled Head | 1215 Steel | - | Zinc Plated Clear Chromate | Yes | Yes |
| Spring | 17-7PH Stainless Steel | - | - | Yes | Yes |
| A Thread | Initial End Force (lbs) | Final End Force (lbs) | B Diameter (inch) | C (inch) | D (inch) | E (inch) | G (inch) | H (inch) | J Diameter (inch) |
| 1/2-13 | 0.5 lbs. | 2 lbs. | 0.312" | 13/32" | 7/8" | 1-1/2" | 1/2" | 1" | 3/16" |
