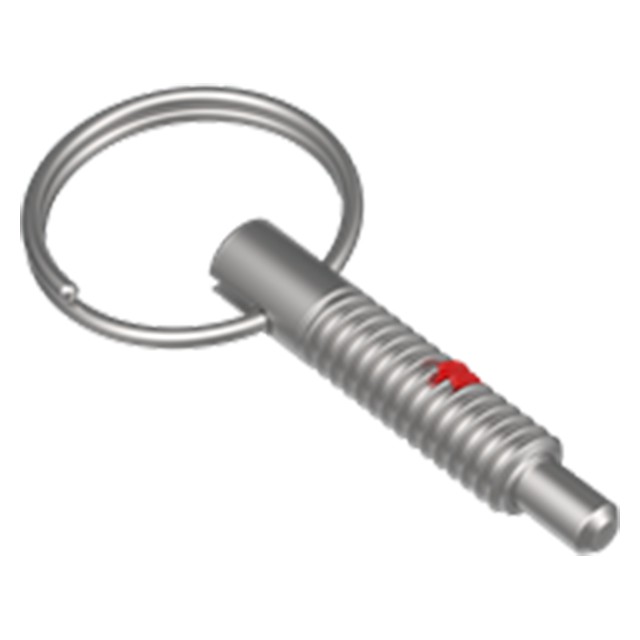

Hand-Retractable Plungers-Pull Ring
Spring-loaded plunger that locks in retracted position. Handy pull ring allows quick actuation, yet folds out of the way when not in use. To lock, pull the ring back and turn 90°. Made in USA.
Application Information
Operation
Extended
Retracted
Material
| Stainless Steel | |||||
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Plunger, Body, Knurled Head and Spring | 300-series Stainless Steel | - | - | Yes | Yes |
Parts Specification
| A Thread | Initial End Force (lbs) | Final End Force (lbs) | B Diameter (inch) | C (inch) | D (inch) | E (inch) | F Diameter (inch) | H (inch) | J Diameter (inch) |
| 3/8-16 | 2 lbs. | 4 lbs. | 0.250" | 3/8" | 1-1/4" | 1-11/16" | 1-1/4" | 3/16" | 3/8" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Ships:
From Manufacturer
