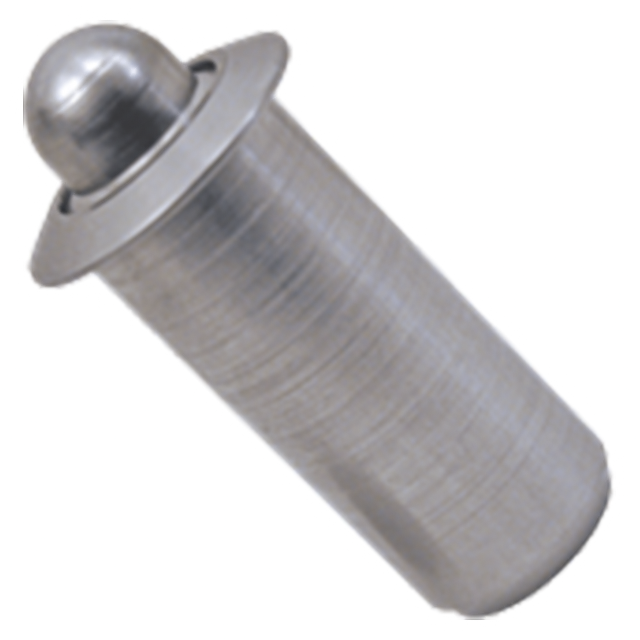

Press-Fit Spring Plungers-Stainless Steel
Simple, economical spring-loaded plunger ideal for installation in softer materials, such as aluminum, wood, or plastic. Use when a threaded hole would be impractical or when adjustment is not required. Sturdy shoulder provides a fixed seating position and positively resists detent force. Installation hole can be counterbored to recess the shoulder.
The version has a stainless steel body and plunger nose for extra corrosion resistance. Made in USA.
Internal View
Nose Extended
Nose Retracted
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body and Plunger Nose | 300-Series Stainless Steel | - | - | Yes | Yes |
| Spring | 302 Stainless | - | - | Yes | Yes |
Parts Specification
| A Diameter (inch) | Initial End Force (lbs) | Final End Force (lbs) | B (inch) | C+/-.010 (inch) | DÂ +.001 / -.002 (inch) | E Diameter (inch) | F (inch) |
| 0.375" | 2.5 lbs. | 7 lbs. | 0.785" | 0.187" | 0.234" | 0.500" | 0.078" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Diameter (Decimal Inch):
0.3750"
Diameter (Inch):
3/8"
Diameter (mm):
9.53mm
