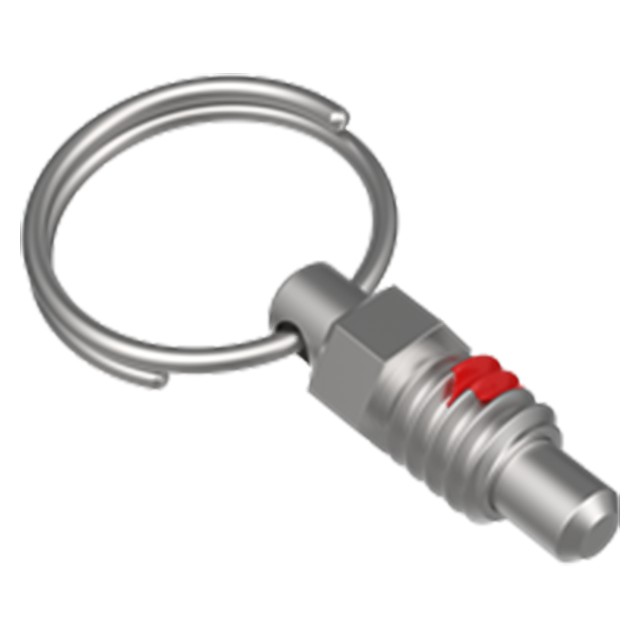

Hand-Retractable Plungers-Pull Ring
Extremely compact spring-loaded plunger that stays extended by spring force except when manually held in retracted position (non-locking). Handy pull ring allows quick actuation, yet folds out of the way when not in use. Made in USA.
Operation
Extended
Retracted
Material
| Delrin Plunger | |||||
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Plunger, Body, Knurled Head and Spring | 300-series Stainless Steel | - | - | Yes | Yes |
Parts Specification
| A Thread | Initial End Force (lbs) | Final End Force (lbs) | B Diameter (inch) | C (inch) | D (inch) | E (inch) | F Diameter (inch) | G (inch) | H (inch) | J (inch) |
| 3/8-16 | 0.75 lbs. | 3 lbs. | 0.250" | 9/32" | 7/16" | 5/8" | 3/4" | 1/8" | 3/16" | 3/8" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Ships:
From Manufacturer
