Simplex Hammers – Type E Inserts: Red Plastic

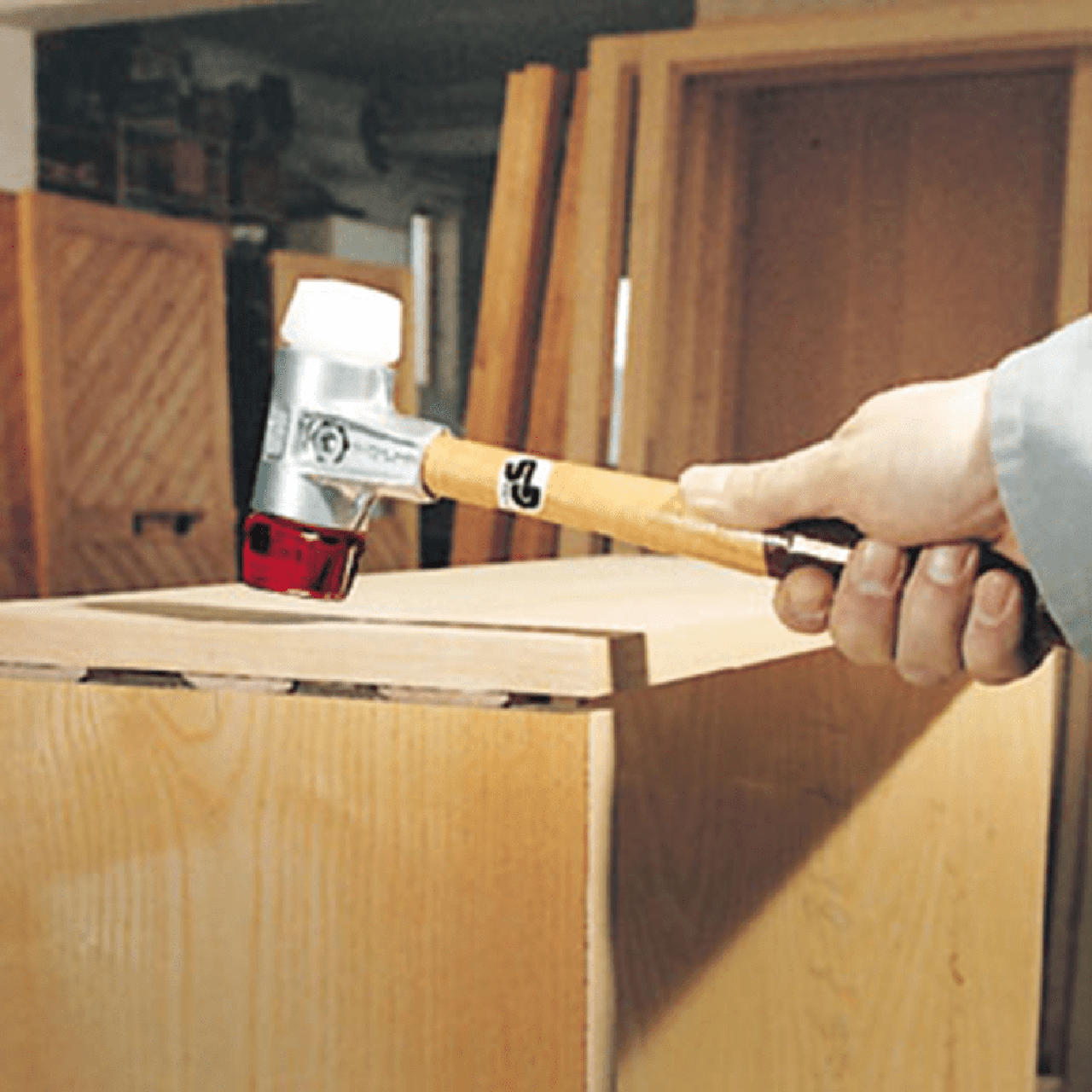

Red plastic inserts for Simplex Hammers are hard, semi-transparent, and grease & oil resistant. Applications include automotive assembly and repair work, sheet metal working, dent removal, concrete-form setup, and scaffold construction.
Application Information
Simplex Hammer System

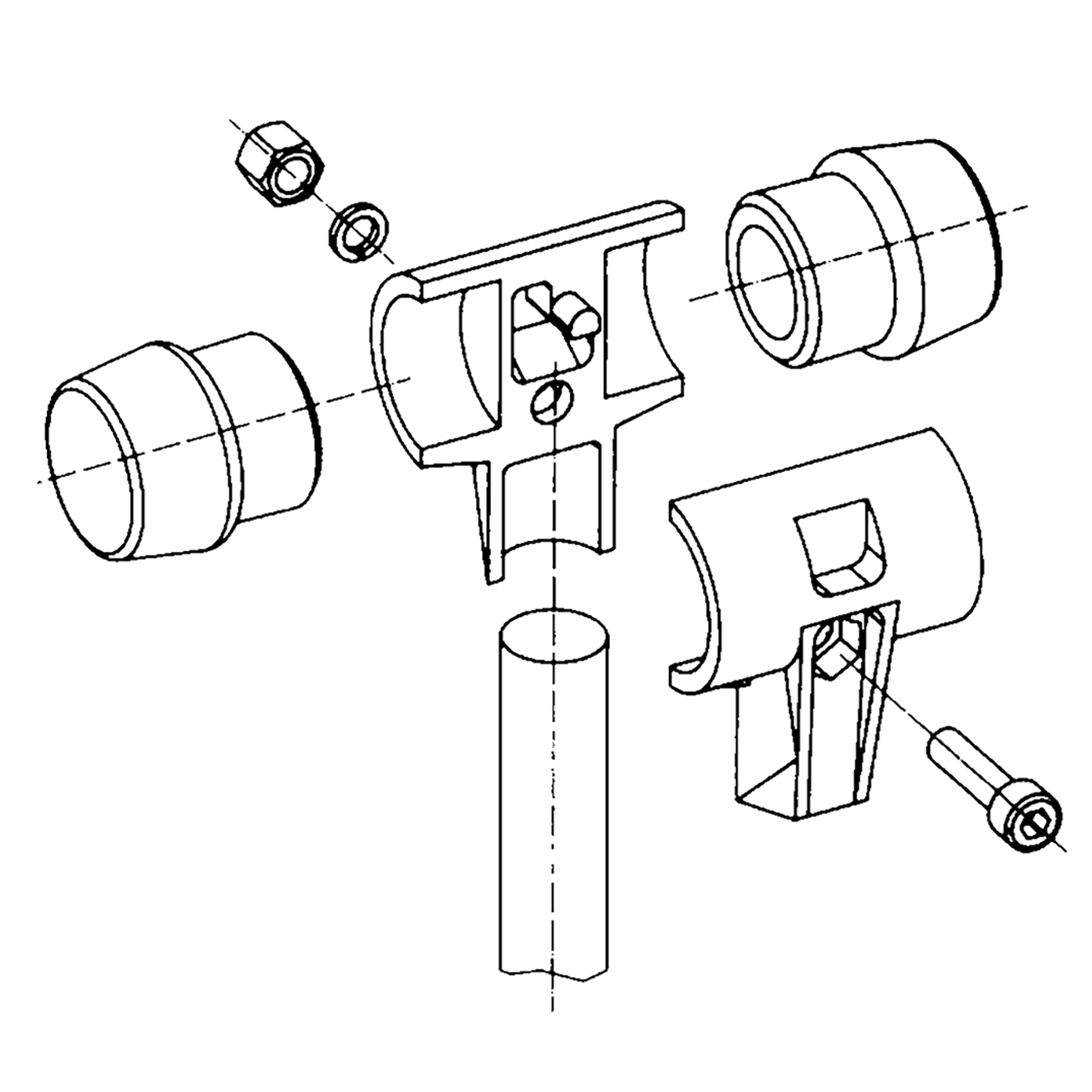

Design your own custom hammers. Simplex soft-face mallets can be customized for specific applications by selecting the proper hammer inserts. Choose the same type of insert for both sides, or build a multi-purpose hammer with a different type of insert for each face. The Simplex system uses a patented hammer housing with 3-point clamping that ensures a safe hammer assembly.
Material
Item | Material | Heat Treat | Finish | DFARS | RoHS |
Type E Inserts | Cellulose acetate | - | red color, hard, hardness 65-75 Shore D | Yes | Yes |
Parts Specification
Hammer Size (Face Diameter) | Tightening Torque With Wooden Handle (ft-lbs) | Tightening Torque With Fiberglass Handle (ft-lbs) |
60mm (2.36) | 30 ft-lbs | 44 ft-lbs |
